Altima Climbing Mast - Dynamic playground equipment - J3503

We have created the reference J3503 in our "Climbing equipment" range. This play equipment is accessible from 14 years. It can accommodate up to 1 user.

The size of the module is: 0.76 m length, 0.50 m width, 4.20 m. high. The free fall height (FFH) is 2.80 m.

In brief

Sports Equation

Muscle stimulation

Movement

2 sports activities

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

3 sports activities

Sensations

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	1 user
FFH :	2.80 m
Size:	0.76 x 0.50 x 4.20 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.50 m3
Surface:	24.50 m2
Total weight:	83.35 kg
Weight of the heaviest element:	65.22 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Altima Climbing Mast J3503 playgrounds acti'fun, the fun way to fitness for everyone climbing equipment video

Altima Climbing Mast J3503 playgrounds acti'fun, the fun way to fitness for everyone climbing equipment image 3d

Altima Climbing Mast J3503 playgrounds acti'fun, the fun way to fitness for everyone climbing equipment image photo

Altima Climbing Mast J3503 playgrounds acti'fun, the fun way to fitness for everyone climbing equipment image side view

Altima Climbing Mast J3503 playgrounds acti'fun, the fun way to fitness for everyone climbing equipment image view from above

Materials

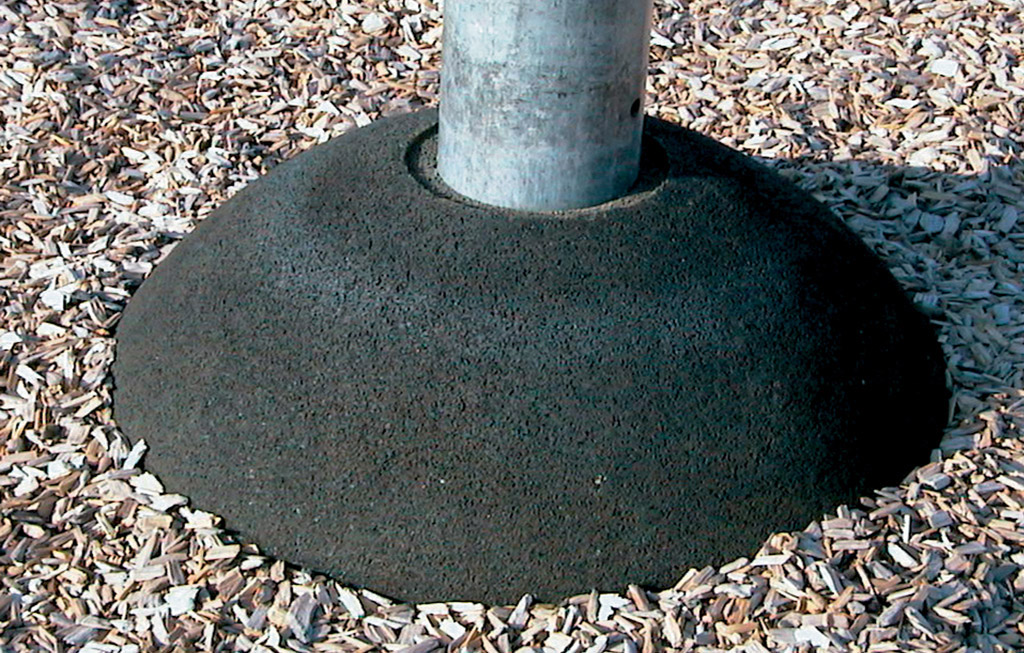

The rubber pad is located at the base of a mast made of galvanised steel.

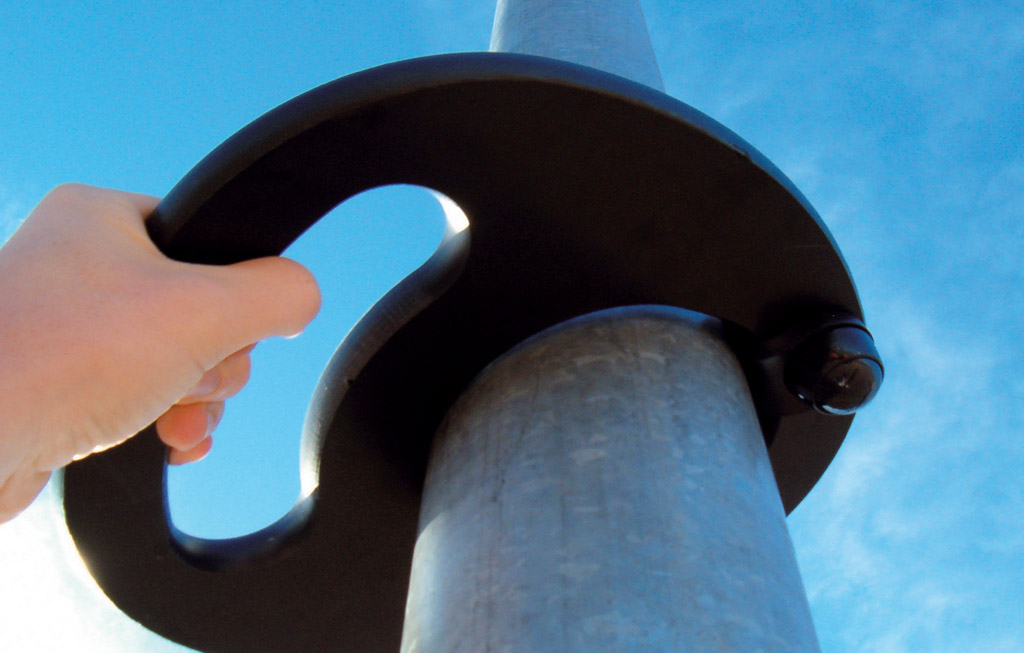

The climbing system (hands) is made of polyethylene.

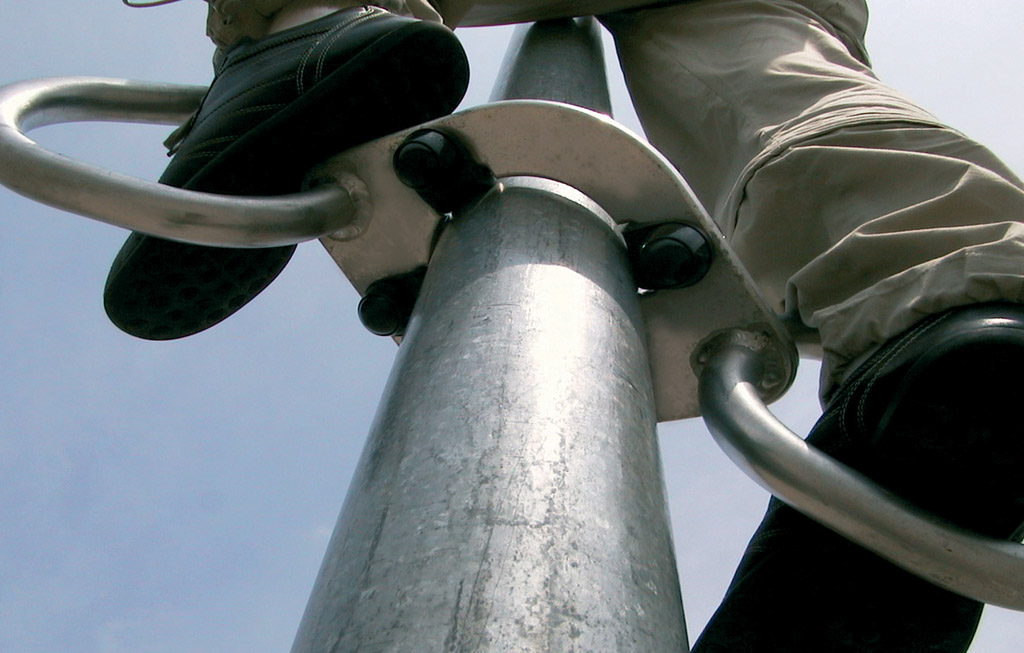

The climbing system (feet) is made of aluminium.

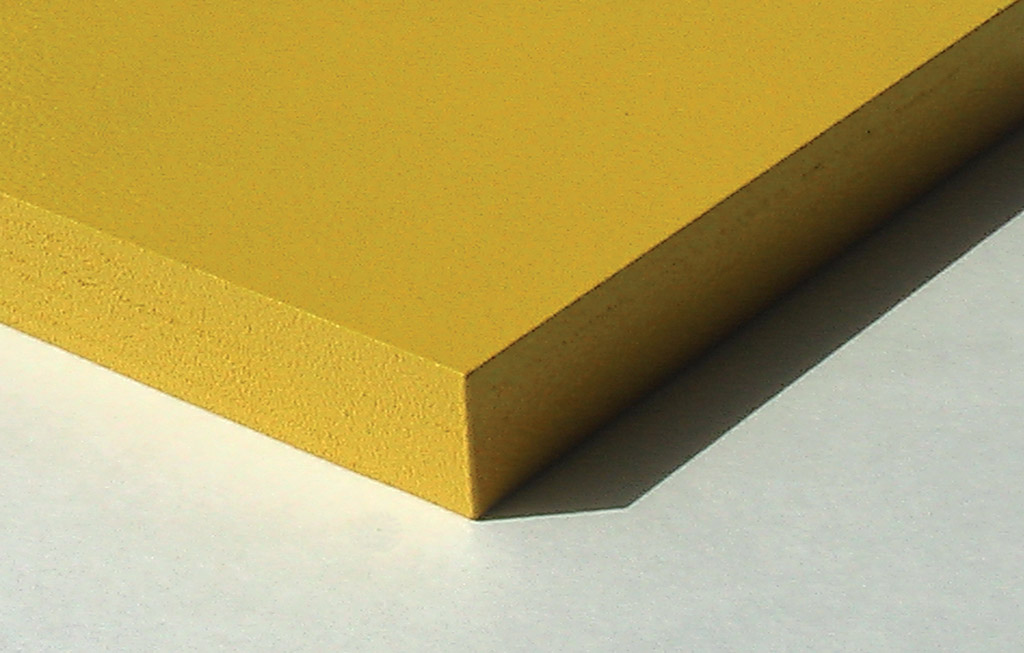

The lacquered panels are made from very high quality plywood 22mm thick, made of alternate layers of thin birch, which offers longevity and an exceptional mechanical... strangth. The colours are applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more
