Climbing equipment - Golgoth - J415

We have created the reference J415 in our "Climbing equipment" range. This play equipment is accessible from 7 years. It can accommodate up to 11 users.

The size of the module is: 4.31 m length, 1.44 m width, 3.90 m. high. The free fall height (FFH) is 2.90 m.

5 play functions

climbing
Climbing x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
sliding
Sliding x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range: 7+
Number of users: 11 users
FFH : 2.90 m
Size: 4.31 x 1.44 x 3.90 m

Equipment installation

Number of installers: 2
Installation time: 06:15:00
Concrete volume: 0.32 m3
Surface: 42.00 m2
Total weight: 204.11 kg
Weight of the heaviest element: 30.97 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

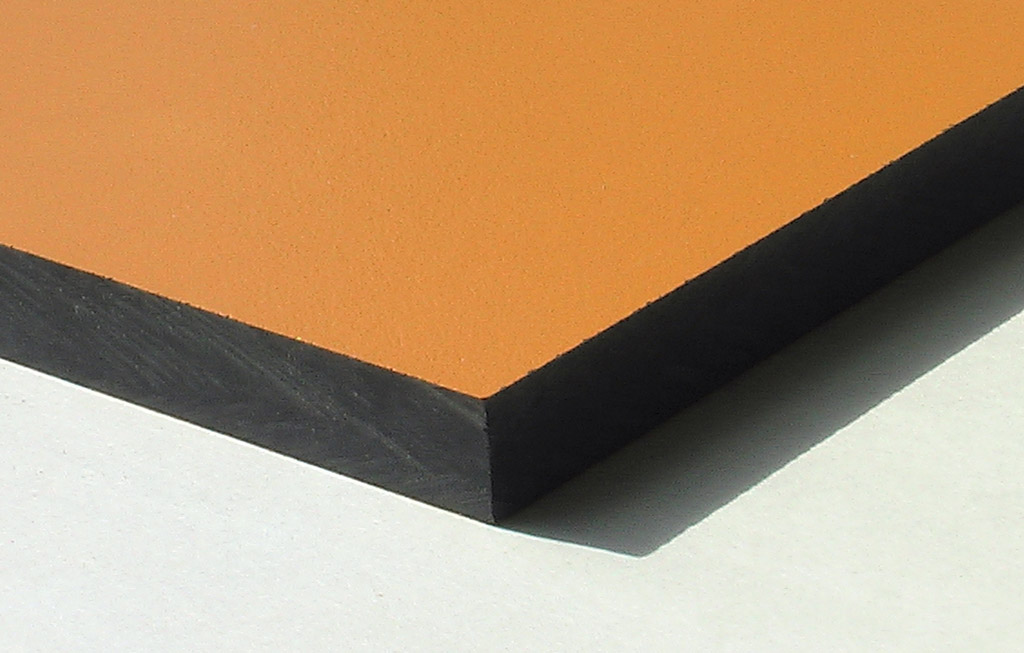

The climbing wall

The climbing wall is made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
