ACTI’Ninja - Ramp - J5916®

We have created the reference J5916® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 8 users.

The size of the module is: 2.85 m length, 0.26 m width, 3.01 m. high. The free fall height (FFH) is 2.45 m.

6 sports activities

balancing
Balancing x2
getting across
Getting across x2
hanging
Hanging x2

4 sports activities

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 8 users
FFH : 2.45 m
Size: 2.85 x 0.26 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.13 m3
Surface: 28.00 m2
Total weight: 166.94 kg
Weight of the heaviest element: 25.81 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Ramp - J5916®
Video - ACTI’Ninja - Ramp - J5916®
Side view
Side view
View from above
View from above

Materials

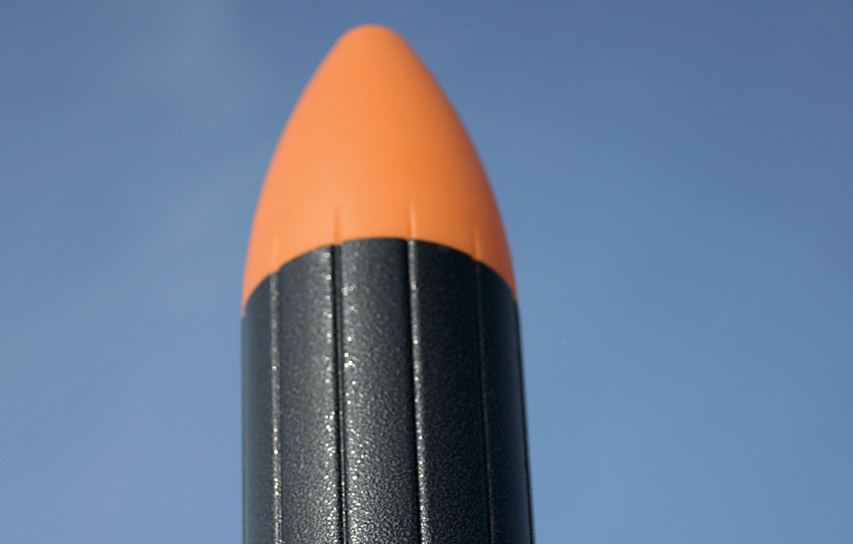

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The footrests and fingerrests

The footrests and fingerrests are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The steps

The steps are made from a 18mm thick, non-slip polyethylene material.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
