Proludic Australia
%s sporting activity
Muscle stimulation
Movement
We have created the reference J5910® in our "ACTI’Ninja" range. This play equipment is accessible from 6 years. It can accommodate up to 10 users.
The size of the module is: 8.22 m length, 3.28 m width, 0.37 m. high. The free fall height (FFH) is 0.60 m.
| Age range: | 6 - 98 |
| Number of users: | 10 users |
| FFH : | 0.60 m |
| Size: | 8.22 x 3.28 x 0.37 m |
| Number of installers: | 2 |
| Installation time: | 04:00:00 |
| Concrete volume: | 1.00 m3 |
| Surface: | 44.50 m2 |
| Total weight: | 112.14 kg |
| Weight of the heaviest element: | 14.20 kg |
Repairability
8.65 /10

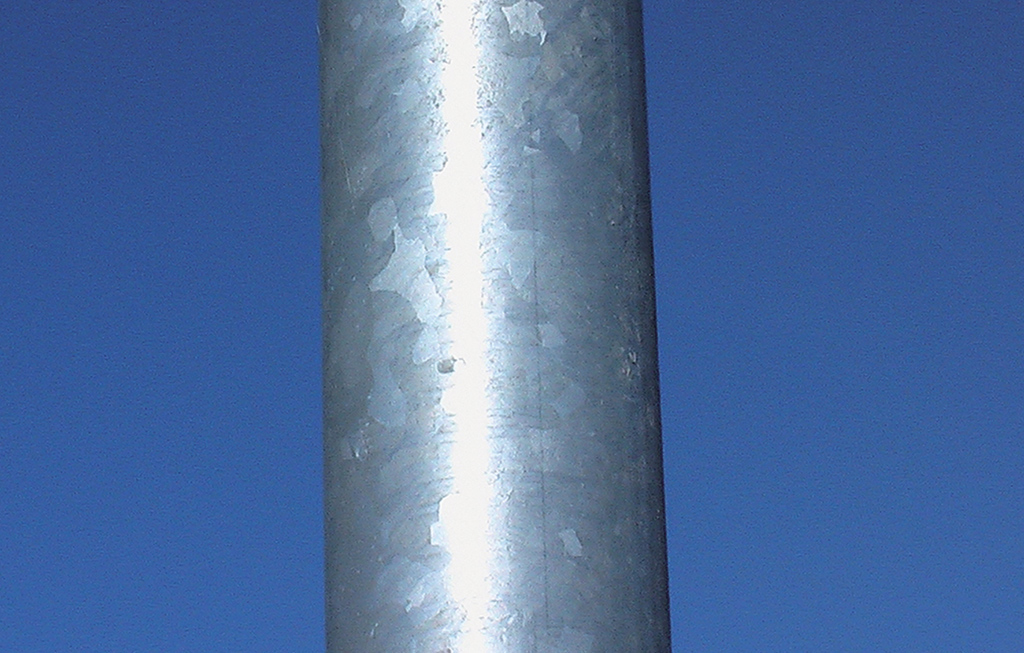

The 115mm diameter posts are made of galvanised steel.
The platform floors are made from a 18mm thick, non-slip polyethylene material.
The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
