Winding tubes

We have created the reference J5911® in our "Ninja trails" range. This module is accessible from 6 years. It can accommodate up to 4 users.

The size of the module is: 4.93 m wide, 1.37 m. deep, 3.01 m. high. The free fall height (FFH) is 1.00 m.

4 play functions

traversing
Traversing x2
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
balancing
Balancing x2
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range: 6+
Number of users: 4 users
FFH : 1.00 m
Size: 4.93 x 1.37 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.80 m3
Surface: 27.50 m2
Total weight: 96.74 kg
Weight of the heaviest element: 18.68 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

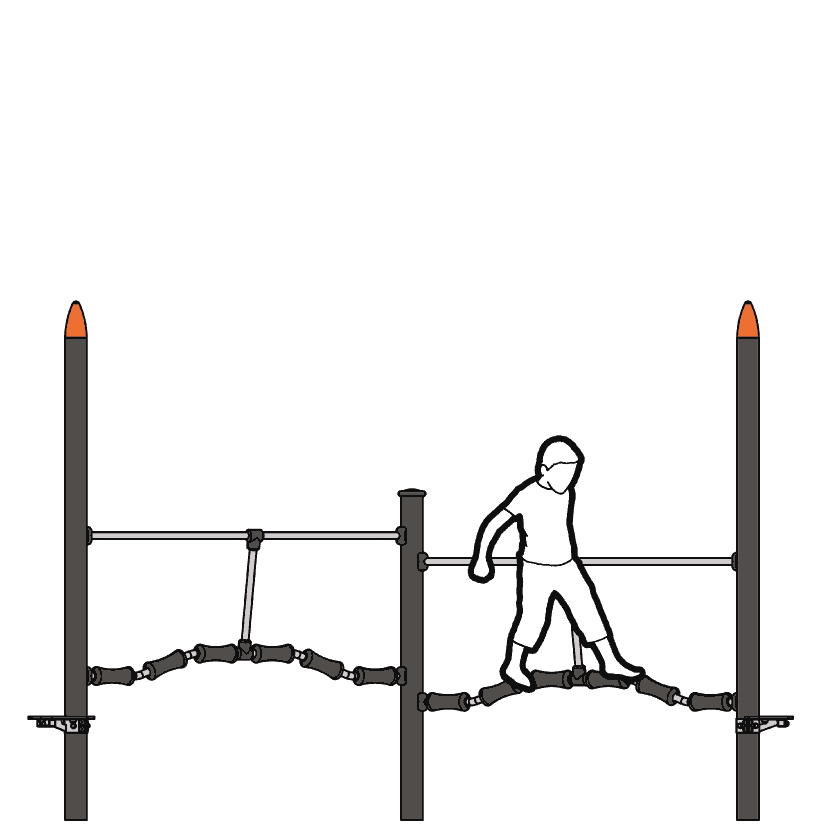

Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The caps

The caps are made of rotary moulded polyethylene (A) or injection moulded polyamide (B).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The footrests

The footrests are made of shock-absorbing rubber with non-slip surfaces.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipement both strong and vandal resistant. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
