ACTI’Ninja - Climbing Slope - J5906®

We have created the reference J5906® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 3.11 m length, 1.08 m width, 1.64 m. high. The free fall height (FFH) is 1.65 m.

3 sports activities

getting across
Getting across x1
climbing
Climbing x2

4 sports activities

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 2 users
FFH : 1.65 m
Size: 3.11 x 1.08 x 1.64 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.11 m3
Surface: 25.00 m2
Total weight: 143.33 kg
Weight of the heaviest element: 40.00 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Climbing Slope - J5906®
Video - ACTI’Ninja - Climbing Slope - J5906®
Side view
Side view
View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

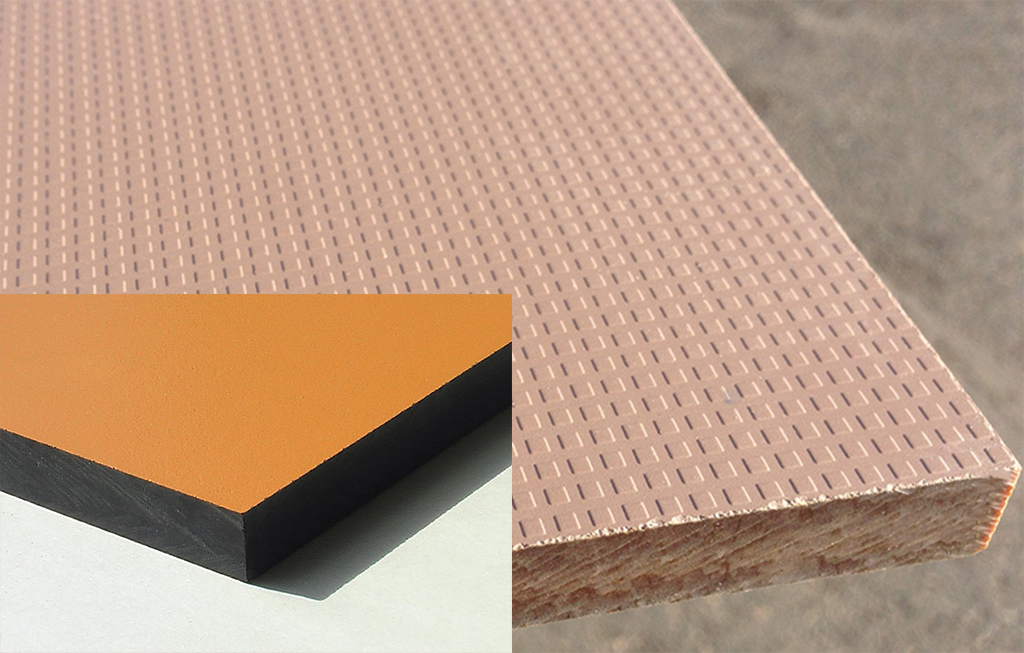

The plate

The plate is machined from non-slip polyethylene panels with a thickness of 12mm in which are embedded compact panels (HPL). The non-slip polyethylene offers... an excellent level of grip and performance over obstacles. Robust in construction, the compact material (HPL) has excellent weather and vandal resistance properties. Read more

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The cables

The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
