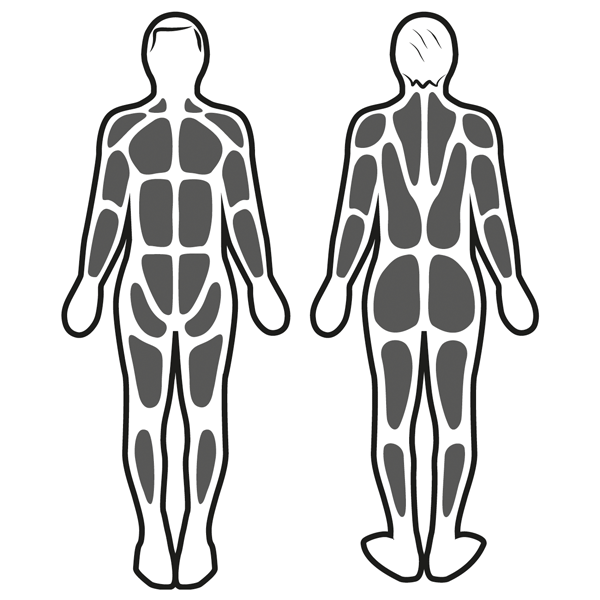

Muscle stimulation

Muscle stimulation

ACTI’Ninja - Suspended Ninja trail - J5921®

We have created the reference J5921® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 4 users.

The size of the module is: 2.46 m length, 1.19 m width, 3.01 m. high. The free fall height (FFH) is 2.32 m.

6 sports activities

balancing
Balancing x1
getting across
Getting across x3
hanging
Hanging x2

4 sports activities

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 4 users
FFH : 2.32 m
Size: 2.46 x 1.19 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.26 m3
Surface: 32.00 m2
Total weight: 163.14 kg
Weight of the heaviest element: 25.81 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The rings

The rings are made of 7mm diameter galvanised steel covered with rubber.

The chains

The chains are made of stainless steel.

The strap

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The steps

The steps are made from a 18mm thick, non-slip polyethylene material.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
