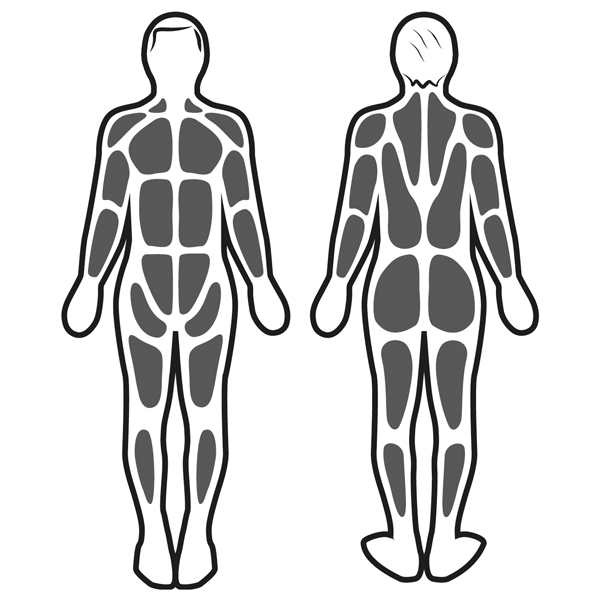

Muscle stimulation

Muscle stimulation

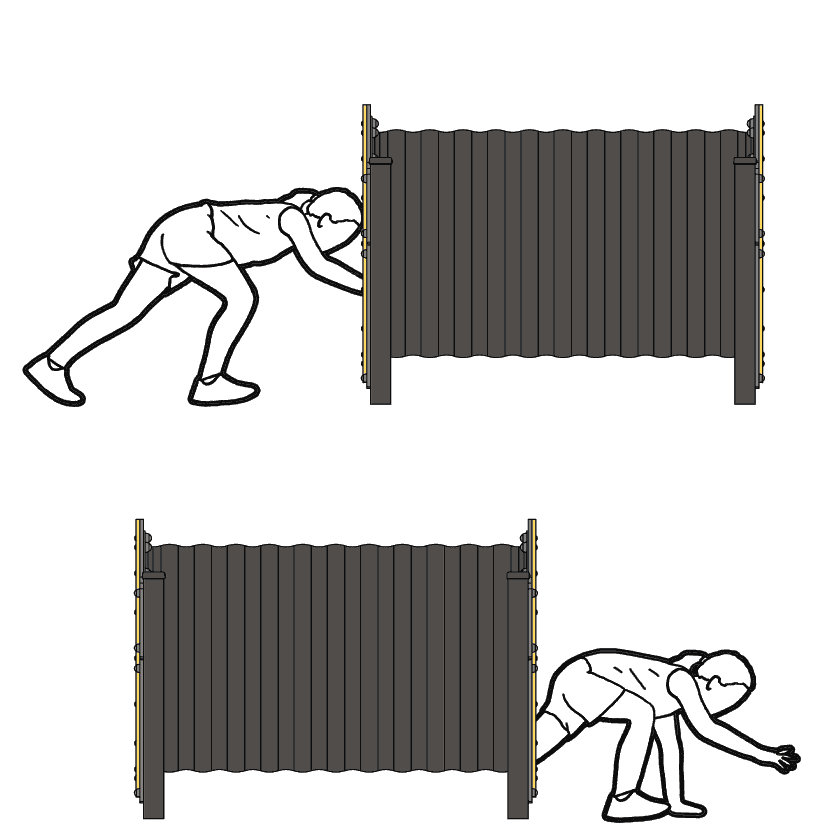

Movement

Movement

ACTI’Ninja - Tunnel - J5902®

We have created the reference J5902® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 1 user.

The size of the module is: 1.38 m length, 1.17 m width, 1.04 m. high. The free fall height (FFH) is 0.60 m.

2 sports activities

crawling
Crawling x1
getting across
Getting across x1

2 sports activities

Sensations
Sensations
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 1 user
FFH : 0.60 m
Size: 1.38 x 1.17 x 1.04 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.11 m3
Surface: 16.50 m2
Total weight: 82.70 kg
Weight of the heaviest element: 16.50 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Tunnel - J5902®
Video - ACTI’Ninja - Tunnel - J5902®
Side view
Side view
View from above
View from above

Materials

The 70 x 70mm posts

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

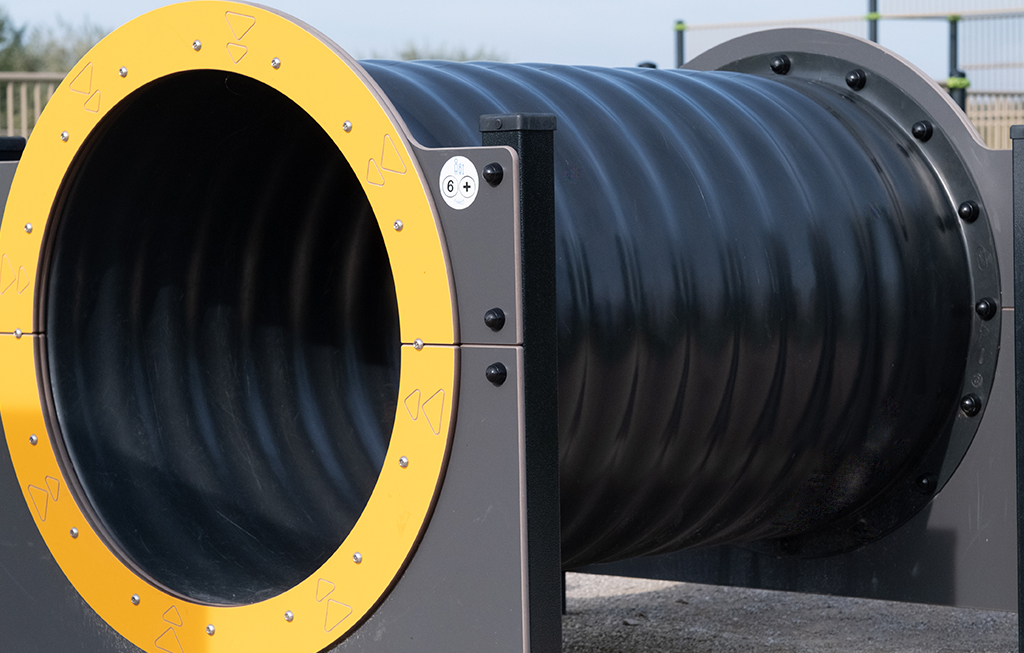

The tunnel

The tunnel is made of 100% recycled rotomolded polyethylene, 76cm in diameter (RAL 9005).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
