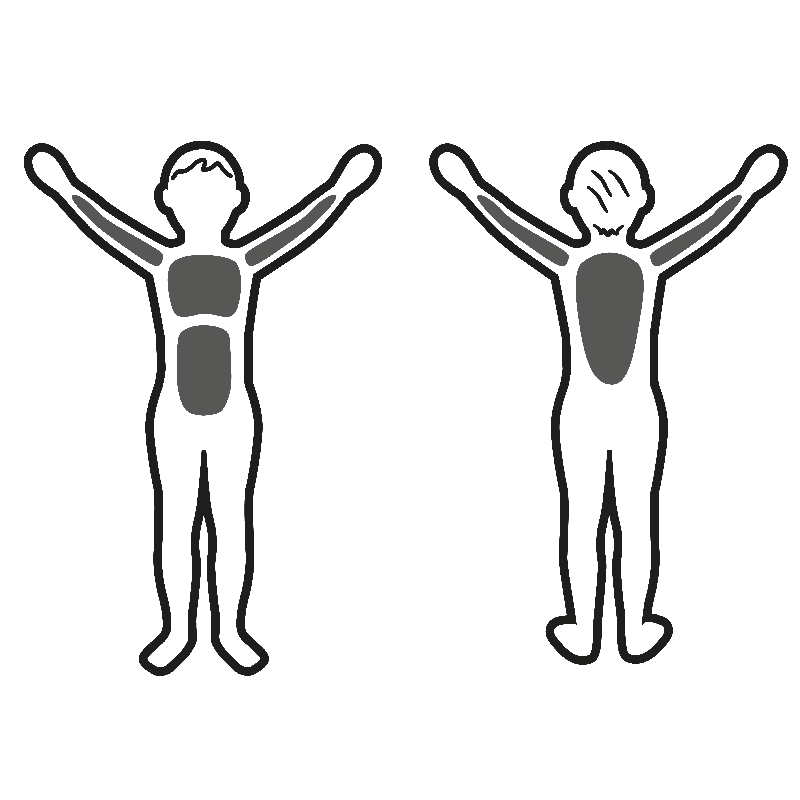

Muscle stimulation

Muscle stimulation

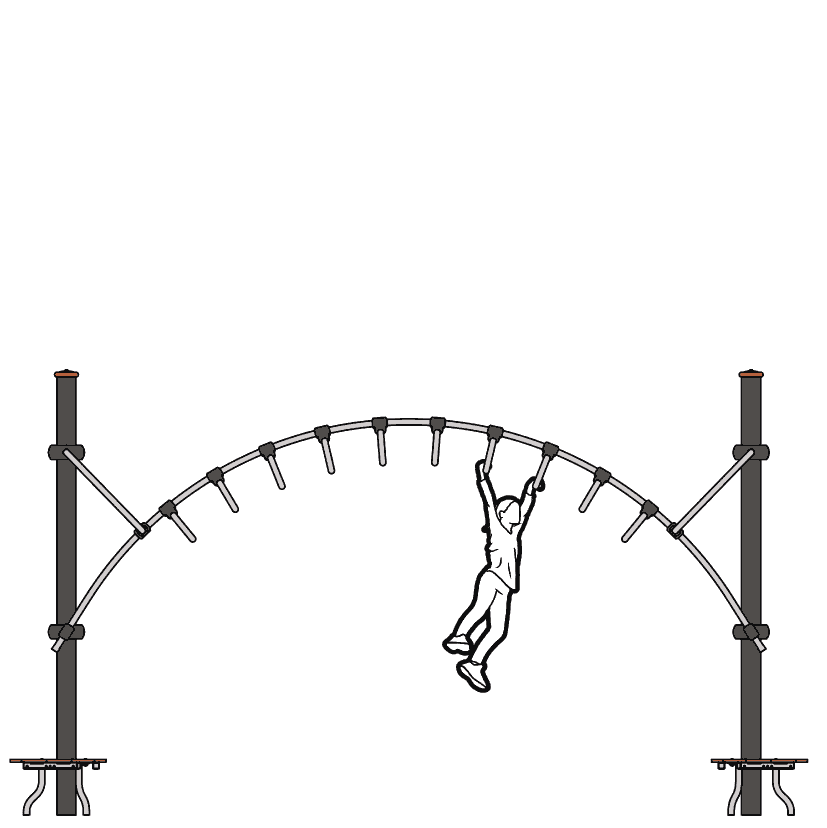

Movement

Movement

Monkey Bar Archway

We have created the reference J5908® in our "ACTI’Ninja" range. This play equipment is accessible from 8 years. It can accommodate up to 4 users.

The size of the module is: 5.24 m length, 1.09 m width, 2.93 m. high. The free fall height (FFH) is 2.40 m.

3 sports activities

getting across
Getting across x1
hanging
Hanging x1
balancing
Balancing x1

Specifications

Age range: 8 - 98
Number of users: 4 users
FFH : 2.40 m
Size: 5.24 x 1.09 x 2.93 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.50 m3
Surface: 45.50 m2
Total weight: 133.90 kg
Weight of the heaviest element: 54.21 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Monkey Bar Archway - J5908®
Video - ACTI’Ninja - Monkey Bar Archway - J5908®
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform floors

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
