In brief

Sports Equation Sports Equation

Sports Equation

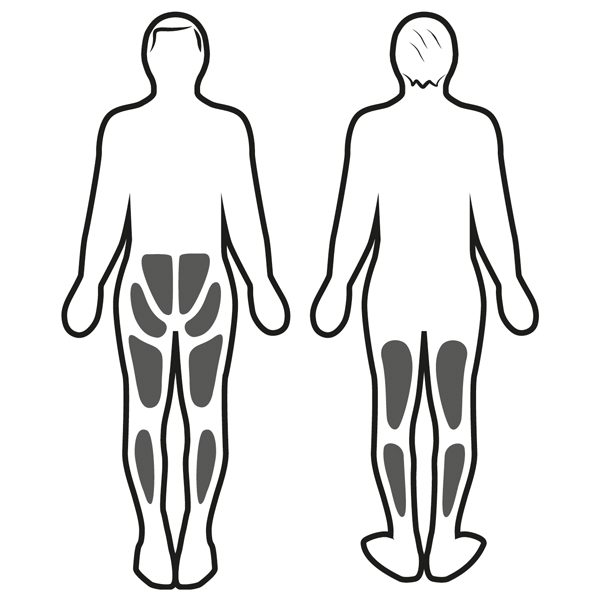

Muscle stimulation

Muscle stimulation

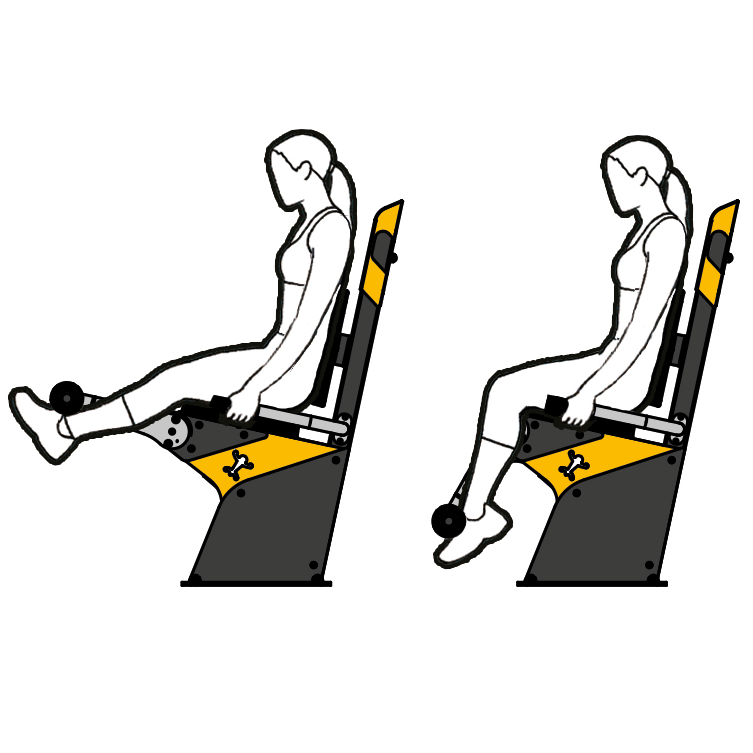

ACTI’Fit - Leg extension - J37226®

We have created the reference J37226® in our "ACTI’Fit" range. It can accommodate up to 1 user.

The size of the module is: 0.93 m length, 0.62 m width, 1.26 m. high. The free fall height (FFH) is 0.68 m.

2 sports activities

Resistance
Resistance x1
Lift
Lift x1

3 sports activities

Application Acti'Fun
Application Acti'Fun
Progressive design
Progressive design
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 1 user
FFH : 0.68 m
Size: 0.93 x 0.62 x 1.26 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.14 m3
Surface: 14.00 m2
Total weight: 70.42 kg
Weight of the heaviest element: 28.42 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 70 x 70mm post

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap

The cap is made of painted stainless steel.

The structure of the equipment

The structure of the equipment is made of painted galvanised steel. The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent... weather and vandal resistance properties. Read more

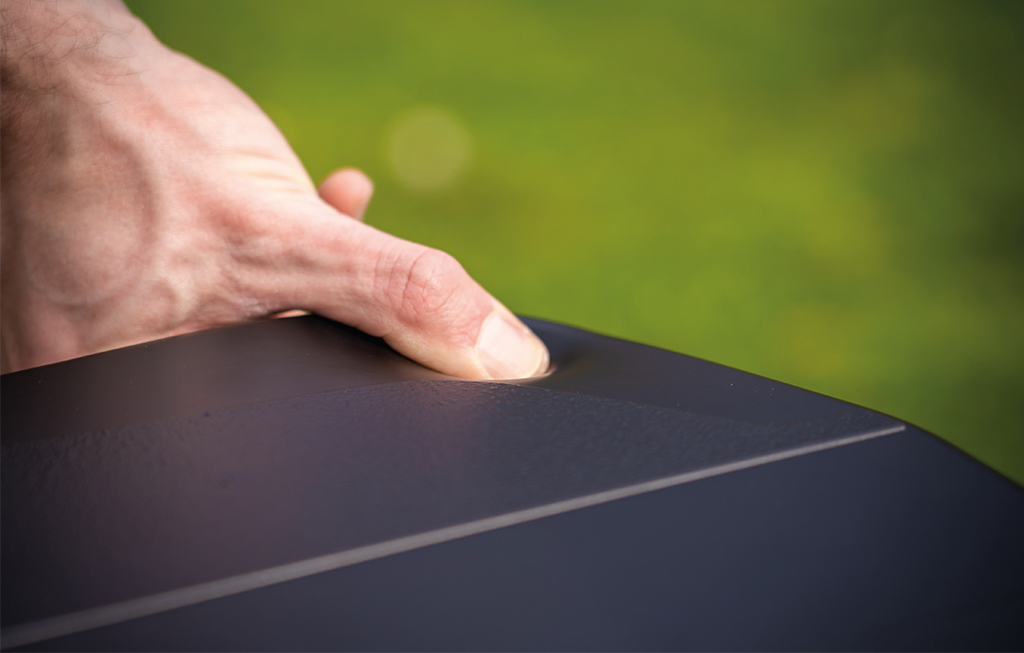

The polyurethane foam seats and backrests

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant, anti-perspiration shape memory material that helps to prevent overheating. The seat is... supported by a painted galvanized steel frame structure. Read more

The hydraulic

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The handles

The handles are made of polyvinyl chloride.

The steps

The steps are made with a non-slip rubber overmould.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
