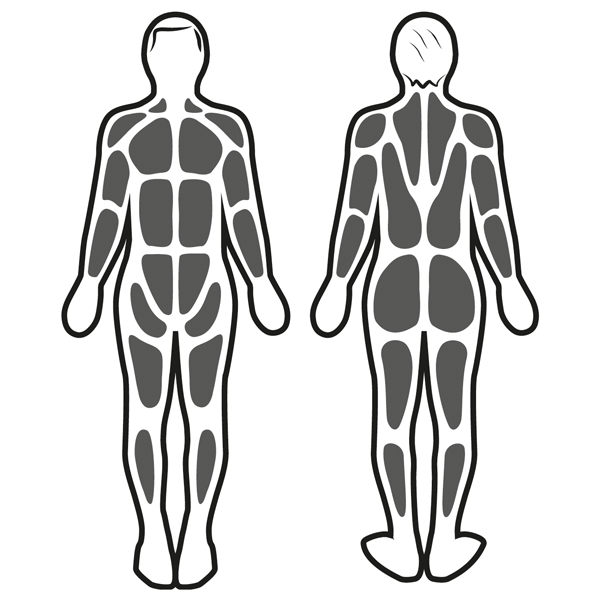

Muscle stimulation

Muscle stimulation

ACTI’Fit - Arm-Leg-Abs fitness station - J37112®

We have created the reference J37112® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 16 users.

The size of the module is: 7.58 m length, 5.45 m width, 3.45 m. high. The free fall height (FFH) is 1.50 m.

20 sports activities

balancing
Balancing x1
jumping
Jumping x1
hanging
Hanging x3
Pull-ups
Pull-ups x5
Dips
Dips x3
Push-ups
Push-ups x3
Abs
Abs x2
Resistance
Resistance x1
Lift
Lift x1
Show more

Specifications

Age range: 10+
Number of users: 16 users
FFH : 1.50 m
Size: 7.58 x 5.45 x 3.45 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 3.50 m3
Surface: 67.00 m2
Total weight: 514.09 kg
Weight of the heaviest element: 28.42 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

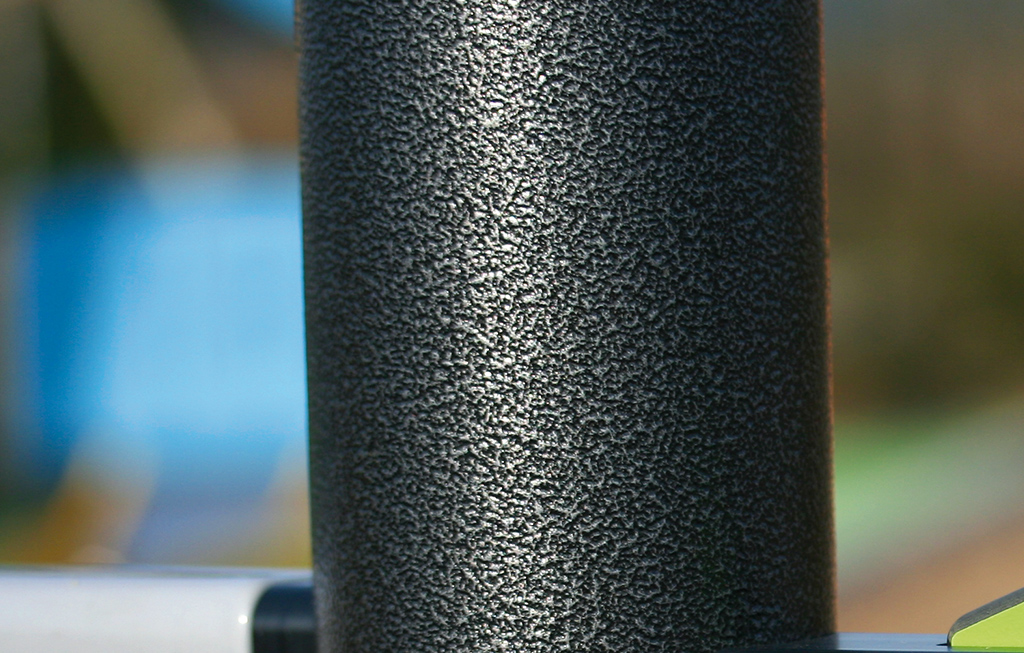

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

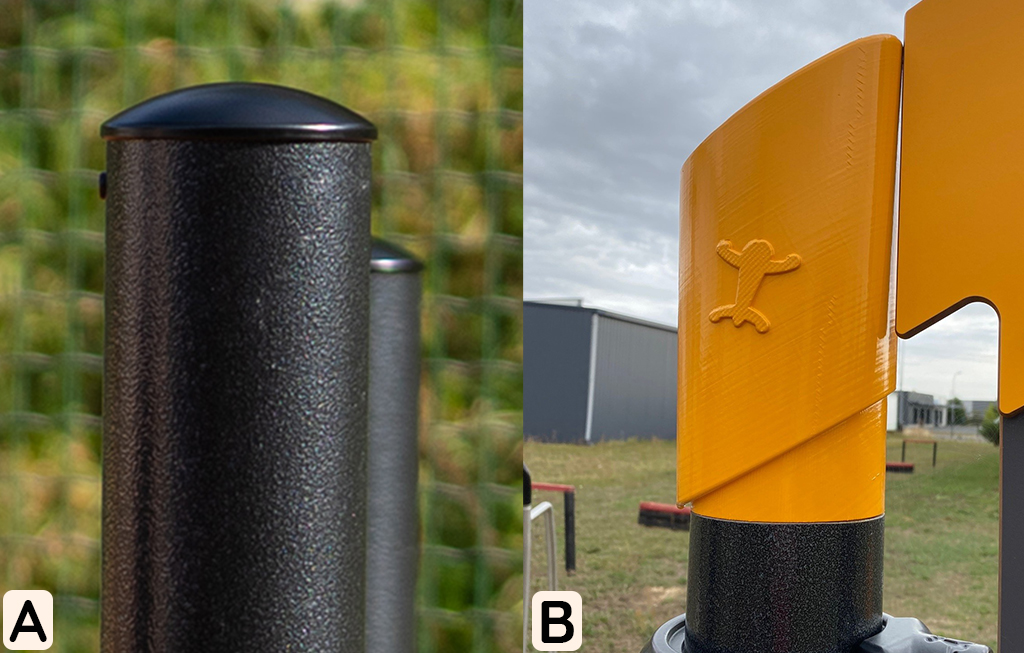

The caps

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubes used for the Parallel bars and Suspension bars

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The fixing collars

The fixing collars are made of painted aluminium.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Central Column seating

The Central Column seating is supported by a painted galvanized steel frame structure.

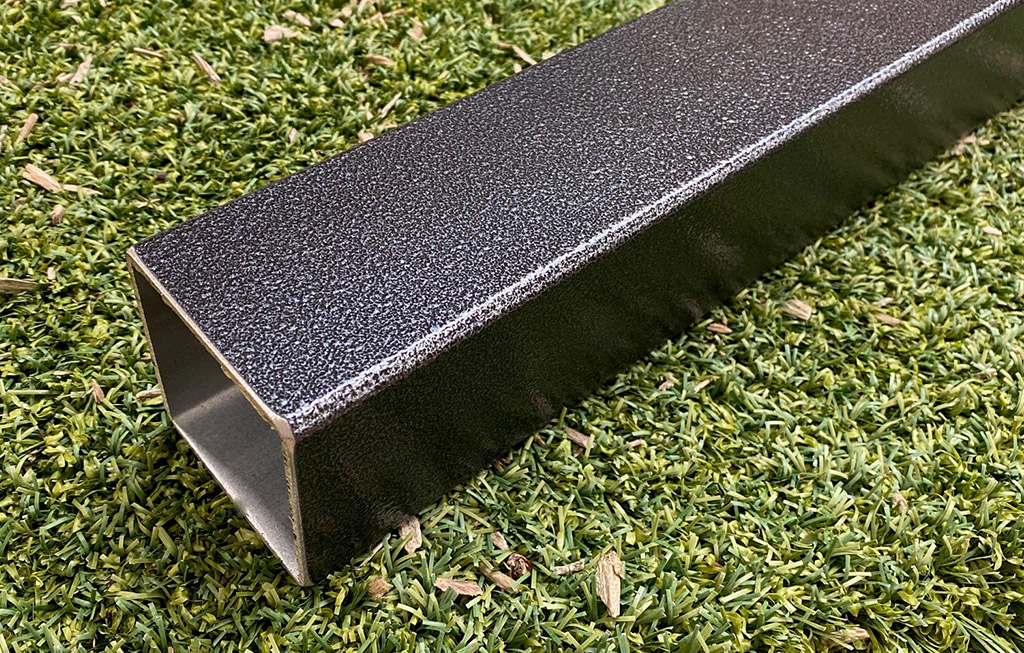

The 70 x 70mm post

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

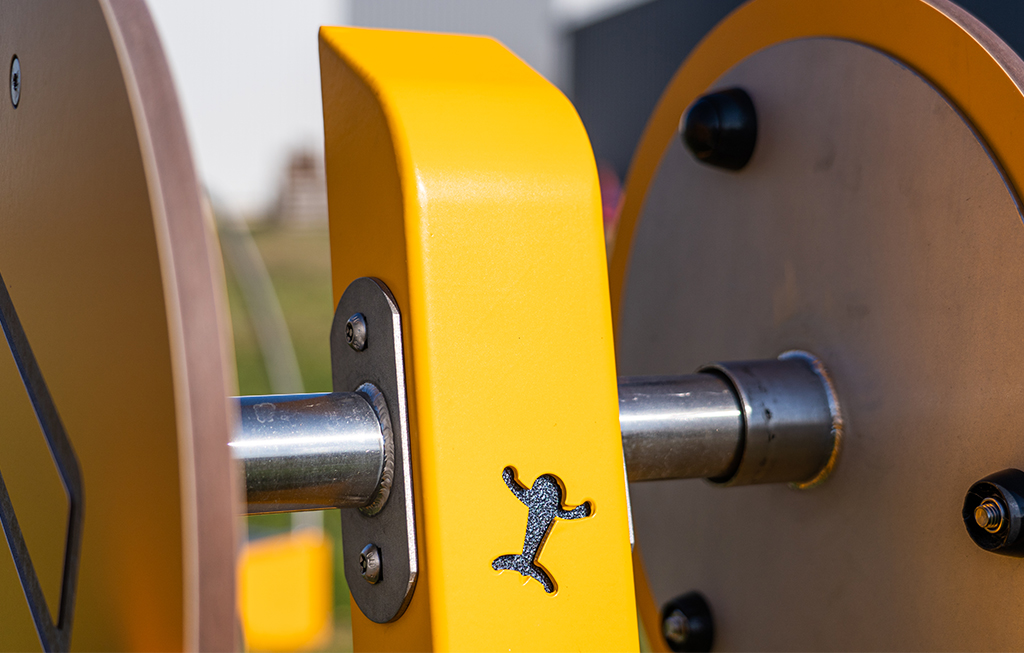

The cap

The cap is made of painted stainless steel.

The polyurethane foam seats and backrests

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The handles

The handles are made of polyvinyl chloride.

The steps

The steps are made with a non-slip rubber overmould.

The hydraulic

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

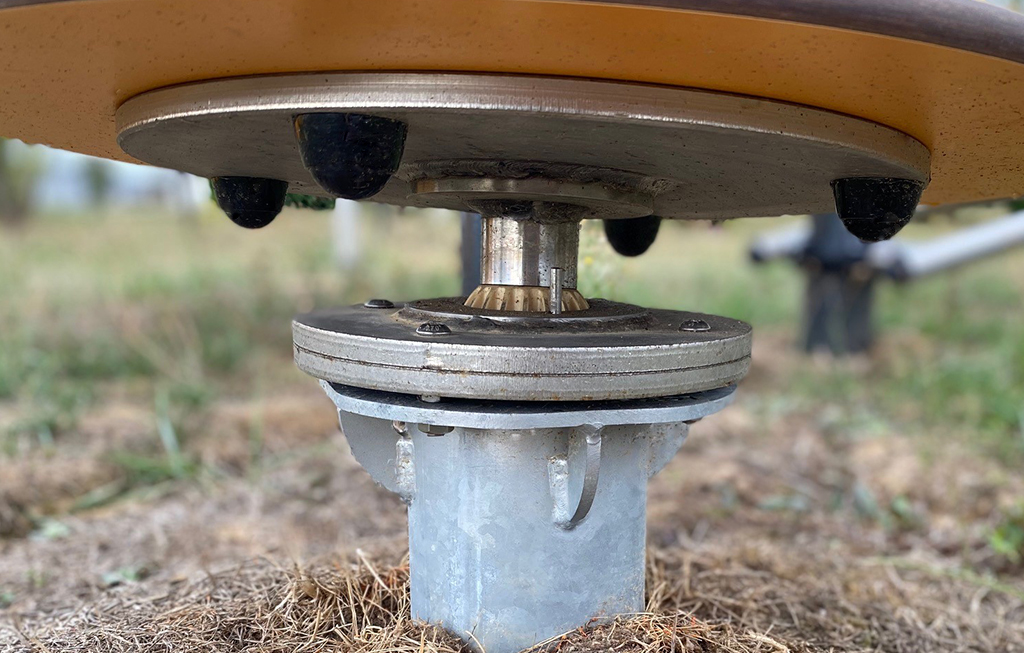

The Balancing board

The Balancing board is fitted to a galvanized steel post, diameter 114 mm. A ball and socket joint ensures ease of movement.

The rings

The rings are made of 7mm diameter galvanised steel covered with rubber.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

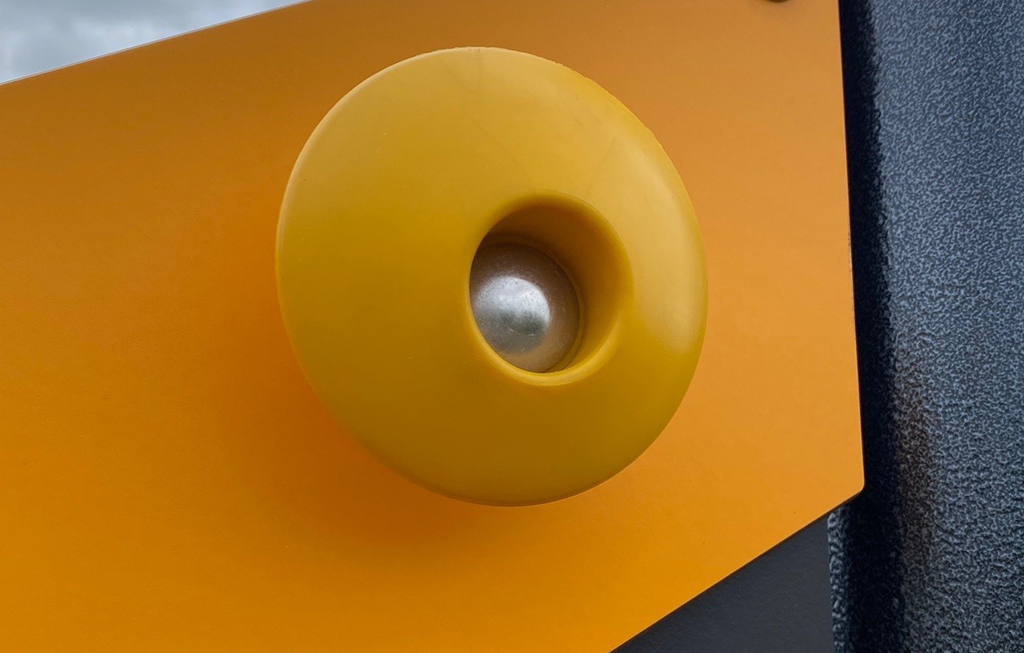

The Coat Hook

The Coat Hook is made of polypropylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
