Dynamic Structures - Rollrunner - J3510®

We have created the reference J3510® in our "Dynamic Structures" range. This play equipment is accessible from 6 years. It can accommodate up to 3 users.

The size of the module is: 2.28 m length, 0.79 m width, 2.25 m. high. The free fall height (FFH) is 0.70 m.

5 sports activities

meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
role play
Role play x1
Role play promotes the child's intellectual and social skills.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
rotating
Rotating x1
Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
Show more

5 sports activities

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge
Show more

Specifications

Age range: 6+
Number of users: 3 users
FFH : 0.70 m
Size: 2.28 x 0.79 x 2.25 m

Equipment installation

Number of installers: 2
Installation time: 04:00:00
Concrete volume: 0.50 m3
Surface: 18.50 m2
Total weight: 341.50 kg
Weight of the heaviest element: 298.74 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Dynamic Structures - Rollrunner - J3510®
Video - Dynamic Structures - Rollrunner - J3510®
Side view
Side view
View from above
View from above

Materials

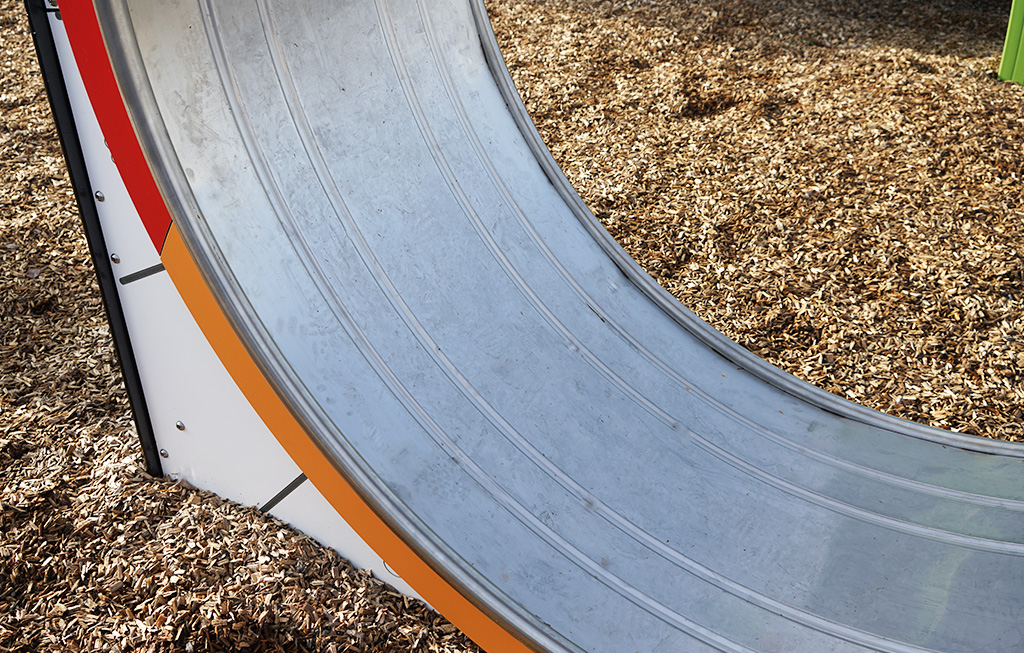

The 180cm diameter wheel

The 180cm diameter wheel is made of stainless steel. Further reinforcement is provided by a galvanised steel structure, on the inside of the equipment.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

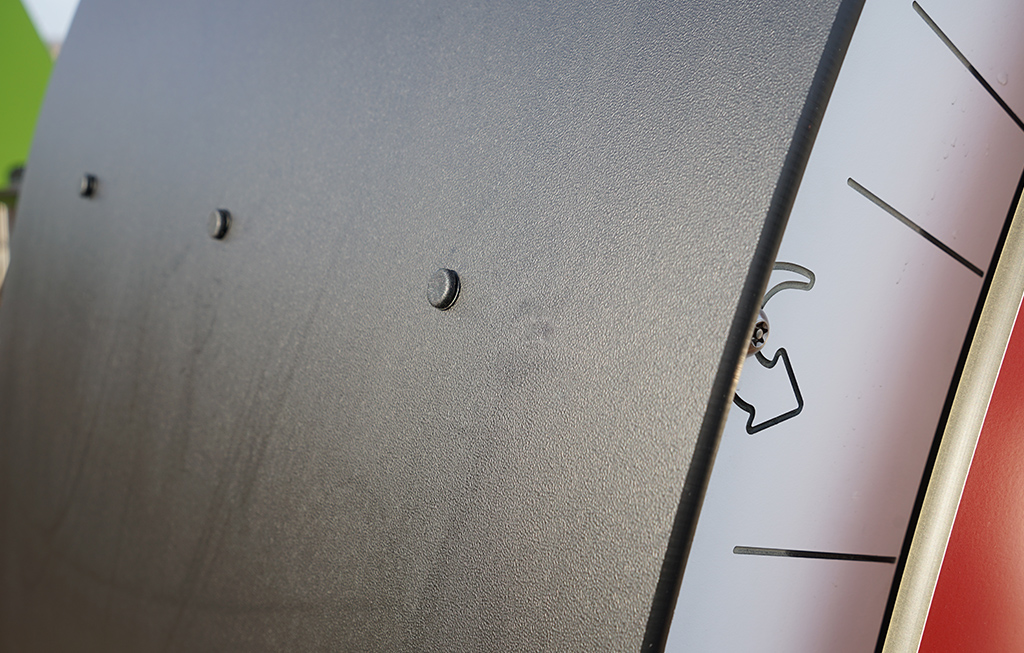

The roof

The roof is made of polyethylene plates 10mm thick.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
