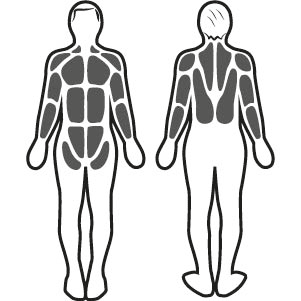

Muscle stimulation

Muscle stimulation

Timber Fitness Trail - Senior Timber Monkey Bars - JPS21-S

We have created the reference JPS21-S in our "Timber Fitness Trail" range. This activity equipment is accessible from 12 years. It can accommodate up to 2 users.

The size of the module is: 3.20 m length, 0.65 m width, 2.40 m. high. The free fall height (FFH) is 1.40 m.

Other finishes available

3 sports activities

getting across
Getting across x1
hanging
Hanging x1
Pull-ups
Pull-ups x1

4 sports activities

Progressive design
Progressive design
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge

Specifications

Age range: 12+
Number of users: 2 users
FFH : 1.40 m
Size: 3.20 x 0.65 x 2.40 m

Equipment installation

Number of installers: 2
Installation time: 01:45:00
Concrete volume: 0.10 m3
Surface: 21.00 m2
Total weight: 114.70 kg
Weight of the heaviest element: 46.87 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

Materials

The vertical 95mm square post

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The tubes

The tubes are made of 34mm diameter galvanised steel.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
