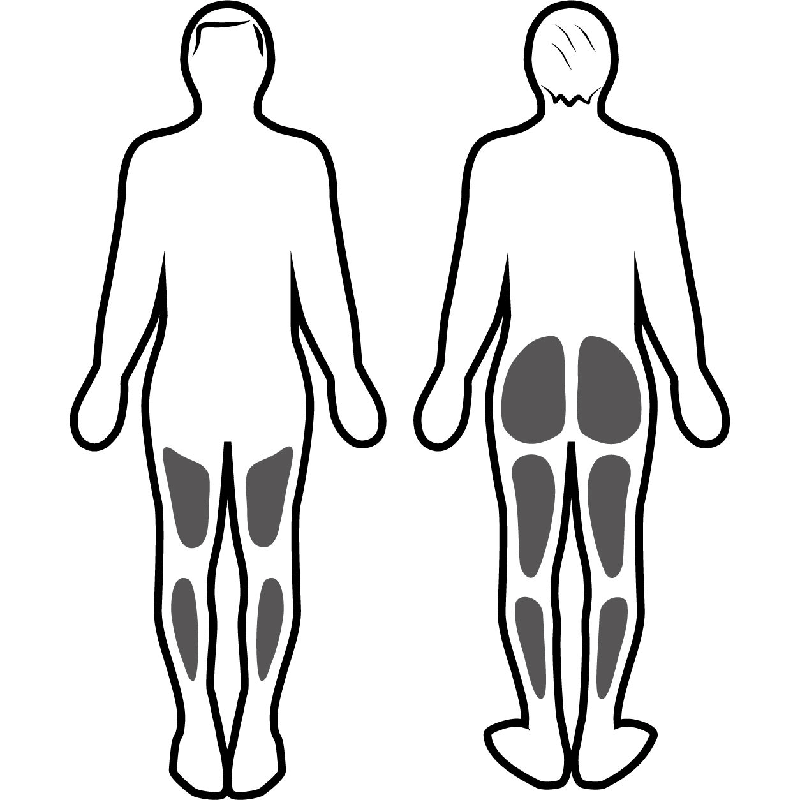

Muscle stimulation

Muscle stimulation

Movement

Movement

ACTI’Ninja - Senior Jump Bars - JPS20-S-M

We have created the reference JPS20-S-M in our "ACTI’Ninja" range. This activity equipment is accessible from 14 years. It can accommodate up to 1 user.

The size of the module is: 2.40 m length, 1.20 m width, 0.50 m. high. The free fall height (FFH) is 0.50 m.

Other finishes available

4 sports activities

jumping
Jumping x1
balancing
Balancing x1
walking
Walking x1
getting across
Getting across x1

3 sports activities

Sensations
Sensations
Progressive design
Progressive design
Diversity
Diversity

Specifications

Age range: 14+
Number of users: 1 user
FFH : 0.50 m
Size: 2.40 x 1.20 x 0.50 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 21.00 m2
Total weight: 78.85 kg
Weight of the heaviest element: 17.37 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Senior Jump Bars - JPS20-S-M
Video - ACTI’Ninja - Senior Jump Bars - JPS20-S-M
Side view
Side view
View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes

The tubes are made of 34mm diameter galvanised steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
