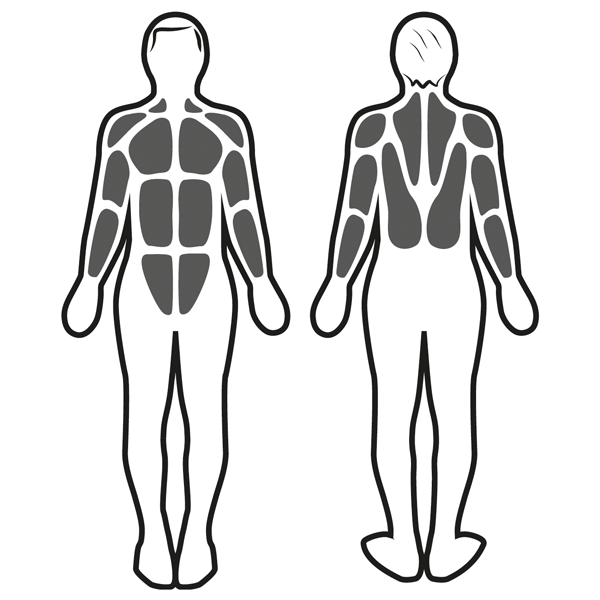

Muscle stimulation

Muscle stimulation

ACTI’Street - Gymnastics rings combination - J5235®

We have created the reference J5235® in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 2 users.

The size of the module is: 2.77 m length, 0.15 m width, 2.32 m. high. The free fall height (FFH) is 1.70 m.

4 sports activities

hanging
Hanging x2
Pull-ups
Pull-ups x2

5 sports activities

Application Acti'Fun
Application Acti'Fun
Sensations
Sensations
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge
Show more

Specifications

Age range: 14+
Number of users: 2 users
FFH : 1.70 m
Size: 2.77 x 0.15 x 2.32 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.60 m3
Surface: 18.00 m2
Total weight: 82.54 kg
Weight of the heaviest element: 22.86 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The rings

The rings are made of 7mm diameter galvanised steel covered with rubber.

The chains

The chains are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
