Rope structures - J4801

We have created the reference J4801 in our "Rope structures" range. This play equipment is accessible from 6 years. It can accommodate up to 60 users.

The size of the module is: 20.80 m length, 15.00 m width, 5.00 m. high. The free fall height (FFH) is 2.90 m.

70 play functions

meeting
Meeting x16
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x7
Resting allows the child to recover from their exertions, and also improve their concentration.
hanging
Hanging x5
This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.
hiding
Hiding x7
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
balancing
Balancing x6
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
climbing
Climbing x10
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x10
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
sliding
Sliding x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
sheltering
Sheltering x7
Finding a small refuge to shelter in ensures children have a space of their own.
Show more

Specifications

Age range: 6+
Number of users: 60 users
FFH : 2.90 m
Size: 20.80 x 15.00 x 5.00 m

Equipment installation

Number of installers: 4
Installation time: 20:00:00
Concrete volume: 7.00 m3
Surface: 277.50 m2
Total weight: 1946.52 kg
Weight of the heaviest element: 150.98 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The pod

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide and are used to link three cords together.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The footrests

The footrests are made of shock-absorbing rubber with non-slip surfaces.

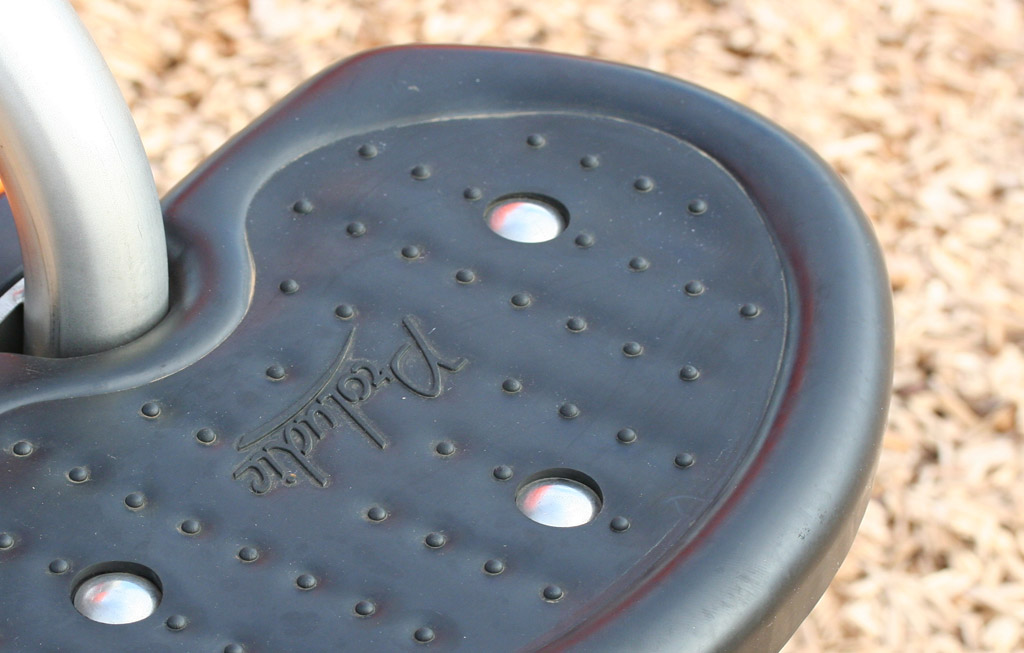

The floating steps

The floating steps are made of shock-absorbing rubber with non-slip surfaces.

The one-piece rail

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
