Rope structures - J4800

We have created the reference J4800 in our "Rope structures" range. This play equipment is accessible from 6 years. It can accommodate up to 35 users.

The size of the module is: 13.69 m length, 10.26 m width, 5.00 m. high. The free fall height (FFH) is 2.50 m.

33 play functions

meeting
Meeting x8
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x4
Resting allows the child to recover from their exertions, and also improve their concentration.
hiding
Hiding x4
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
balancing
Balancing x2
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x4
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
hanging
Hanging x2
This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.
sheltering
Sheltering x4
Finding a small refuge to shelter in ensures children have a space of their own.
Show more

Specifications

Age range: 6+
Number of users: 35 users
FFH : 2.50 m
Size: 13.69 x 10.26 x 5.00 m

Equipment installation

Number of installers: 3
Installation time: 10:00:00
Concrete volume: 3.40 m3
Surface: 130.00 m2
Total weight: 1044.90 kg
Weight of the heaviest element: 150.98 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

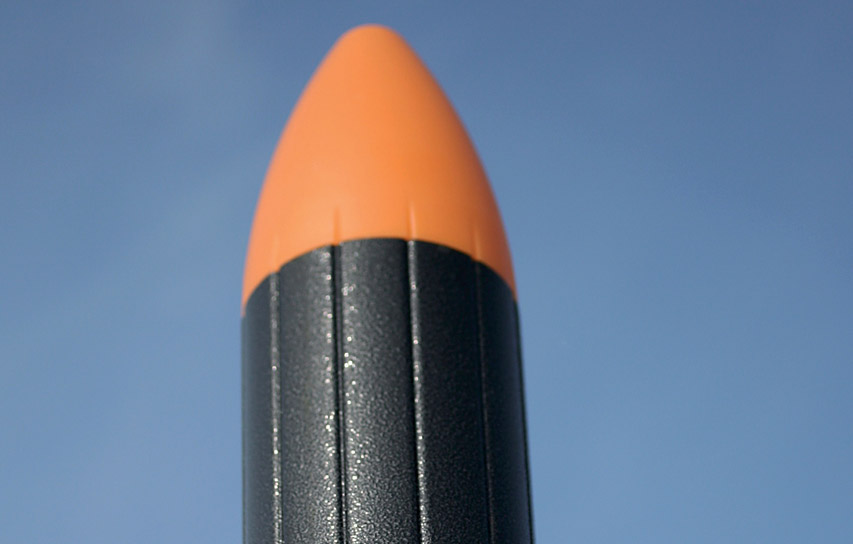

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

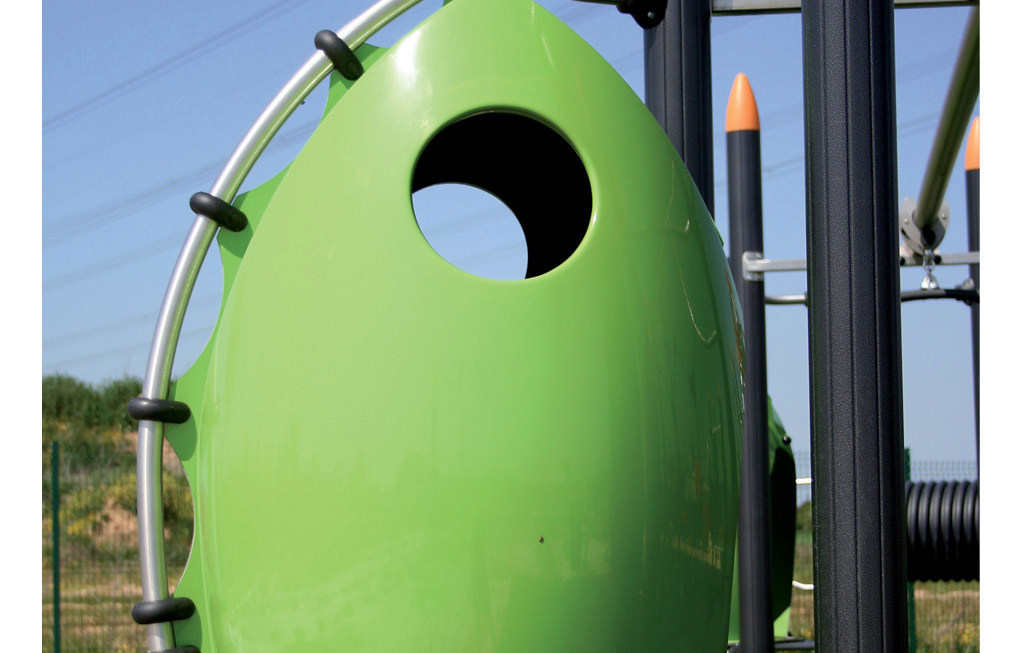

The pod

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

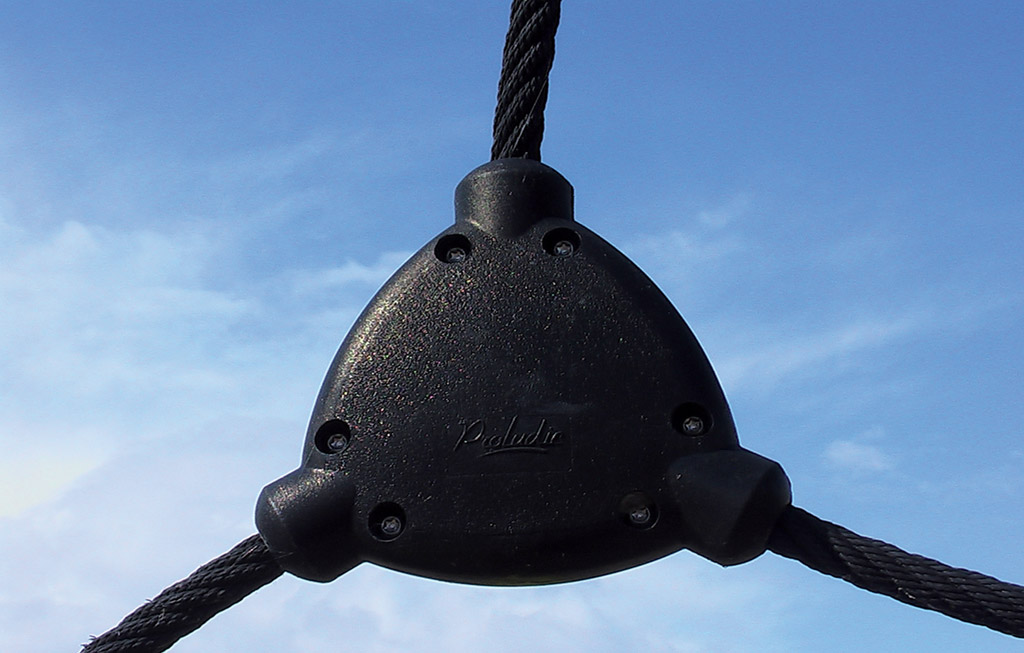

The net fittings

The net fittings are made of polyamide and are used to link three cords together.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The footrests

The footrests are made of shock-absorbing rubber with non-slip surfaces.

The steps

The steps are made of shock-absorbing rubber with non-slip surfaces.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
