Tree Frogs

We have created the reference J985 in our "Springers" range. This module is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 2.63 m wide, 0.30 m. deep, 0.85 m. high. The free fall height (FFH) is 0.75 m.

4 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Specifications

Age range:	2+
Number of users:	4 users
FFH :	0.75 m
Size:	2.63 x 0.30 x 0.85 m

Equipment installation

Number of installers:	2
Installation time:	00:45:00
Surface:	10.00 m2
Total weight:	86.37 kg
Weight of the heaviest element:	65.97 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The seats are made from a 12.5mm thick textured and non-slip compact material (HPL).

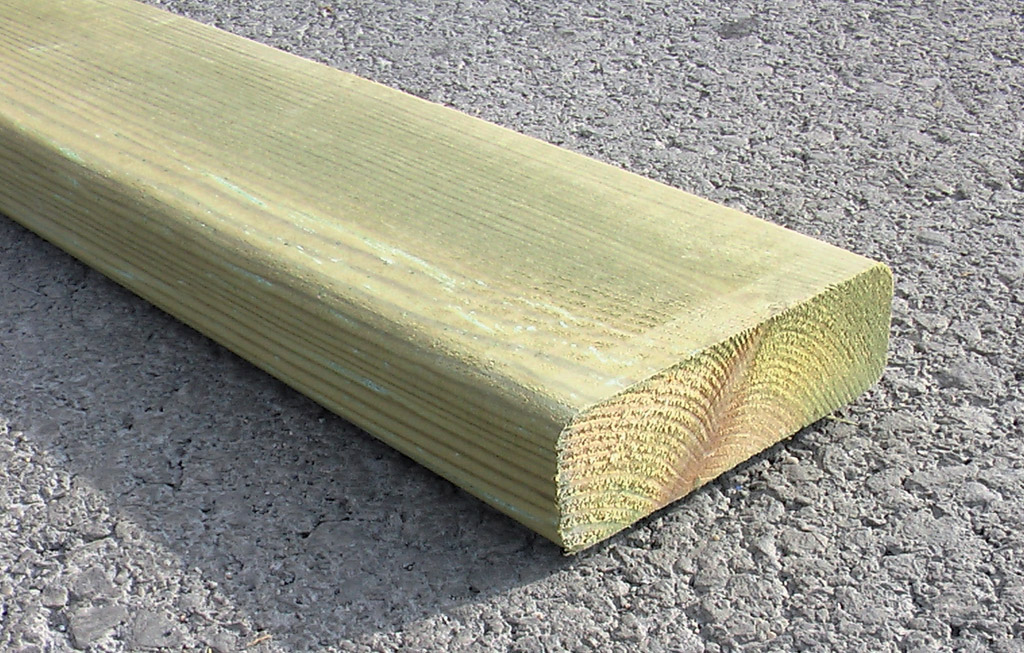

The board is made of solid wood with autoclave treatment, 95x36mm.

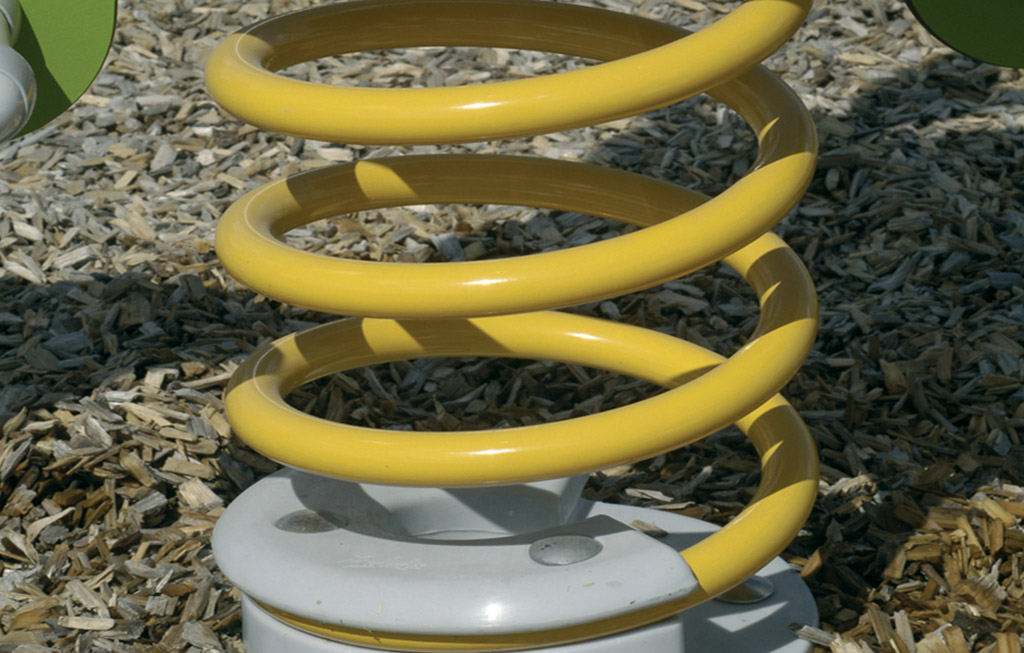

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. Proludic have... patented an exceptionally strong and secure polyamide fixing for the spring, ensuring a long product life. Read more
