Observatory tower

We have created the reference J49417® in our "Adventures in nature" range. This play equipment is accessible from 3 years. It can accommodate up to 36 users.

The size of the module is: 7.10 m length, 5.20 m width, 6.20 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

J49417-P®

18 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x3

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Sheltering x2

Finding a small refuge to shelter in ensures children have a space of their own.

Visual stimulation x5

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	36 users
FFH :	1.17 m
Size:	7.10 x 5.20 x 6.20 m

Equipment installation

Number of installers:	2
Installation time:	35:00:00
Concrete volume:	4.10 m3
Surface:	44.50 m2
Total weight:	2891.60 kg
Weight of the heaviest element:	1200.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The boards are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

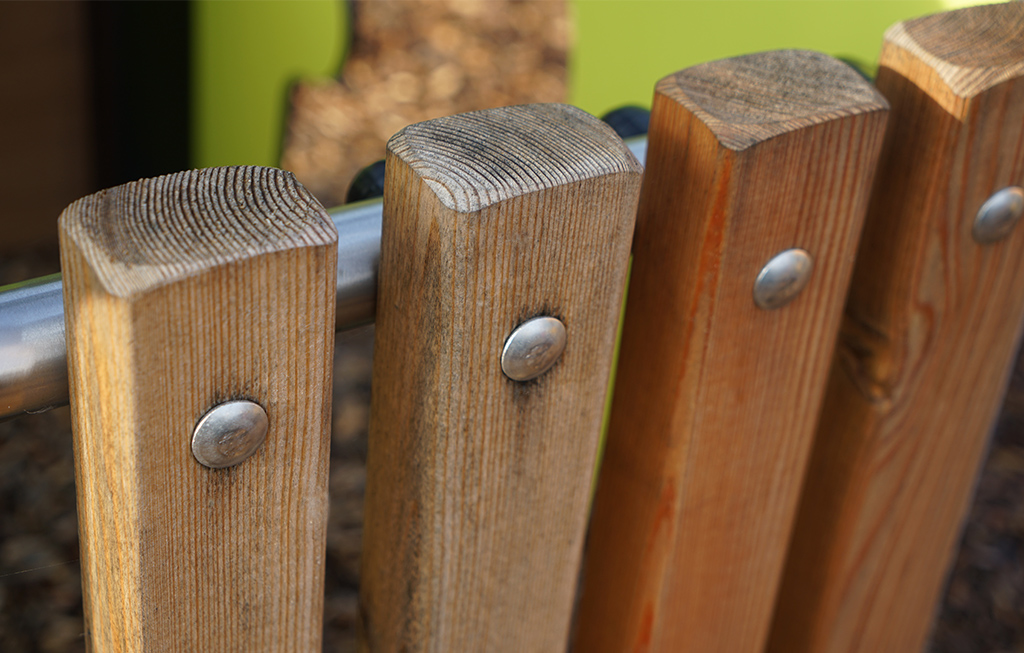

The panels are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

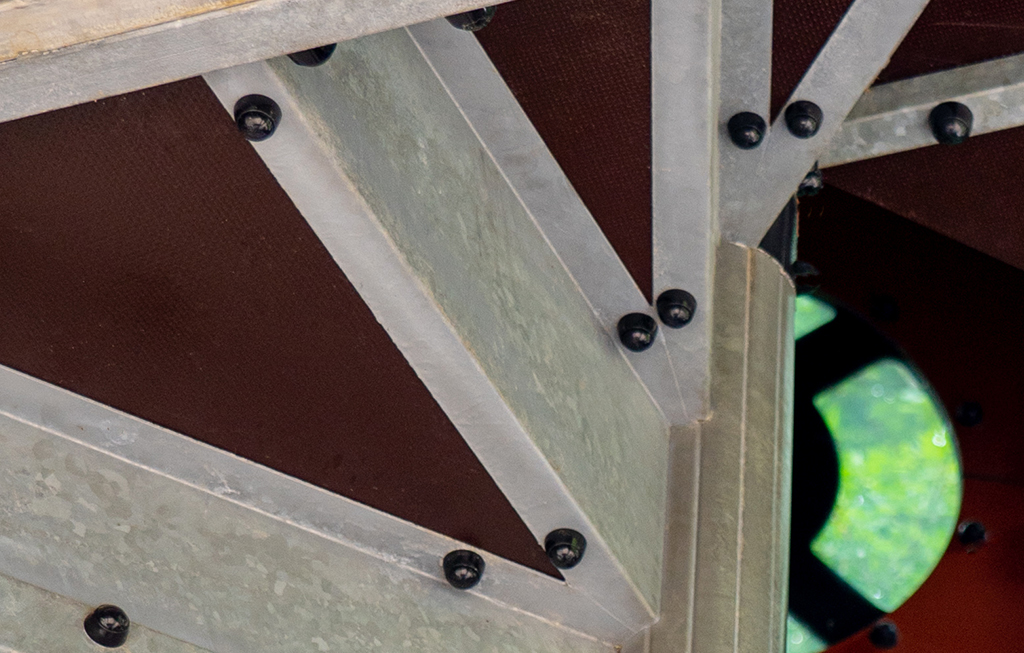

The structure of the stairs is made of galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
