Springers - Seesaw - J4920

We have created the reference J4920 in our "Springers" range. This play equipment is accessible from 3 years. It can accommodate up to 2 users.

The size of the module is: 3.00 m length, 0.50 m width, 1.12 m. high. The free fall height (FFH) is 1.17 m.

3 play functions

meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range: 3+
Number of users: 2 users
FFH : 1.17 m
Size: 3.00 x 0.50 x 1.12 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.16 m3
Surface: 12.00 m2
Total weight: 92.84 kg
Weight of the heaviest element: 48.02 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Springers - Seesaw - J4920
Video - Springers - Seesaw - J4920
Side view
Side view
View from above
View from above

Materials

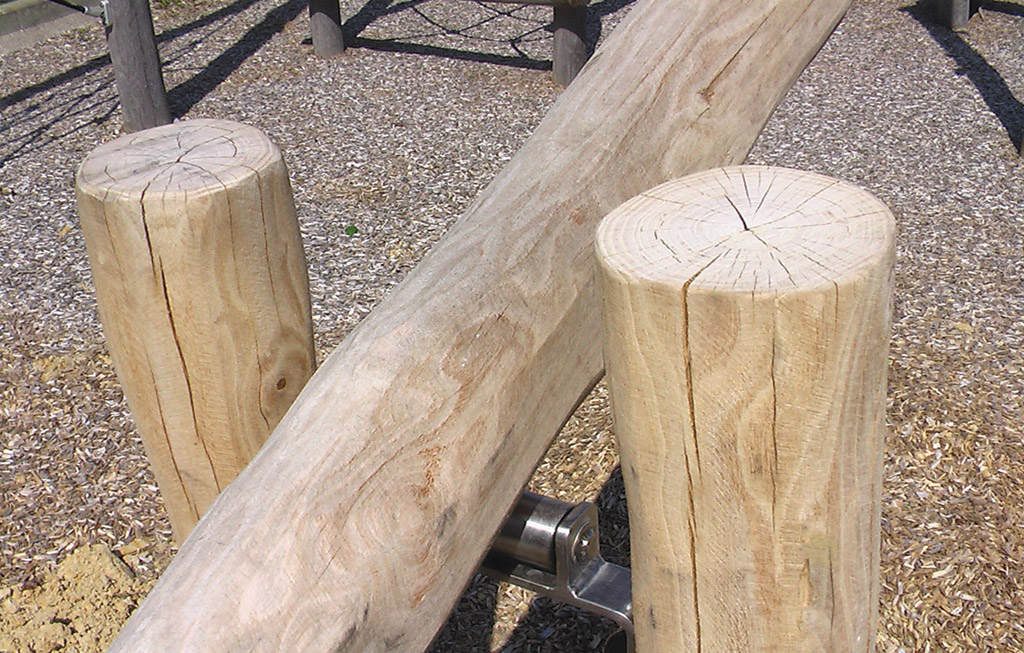

The posts and the horizontal beam

The posts and the horizontal beam (diameter 120 to 140mm), are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

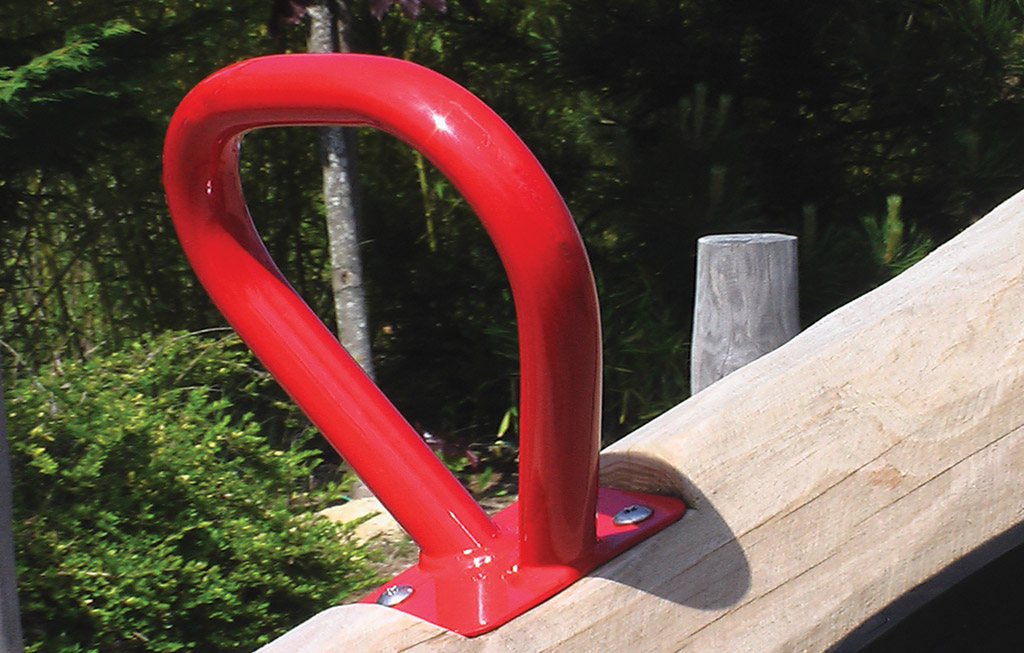

The handles

The handles are made of galvanised, painted steel.

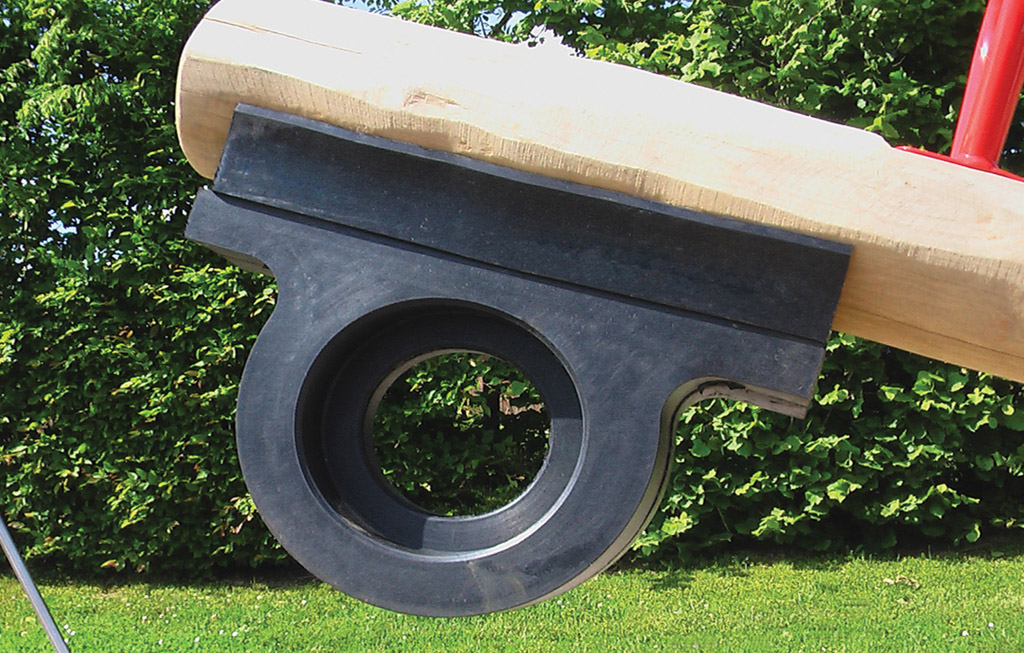

The dampener

The dampener is made from rubber.

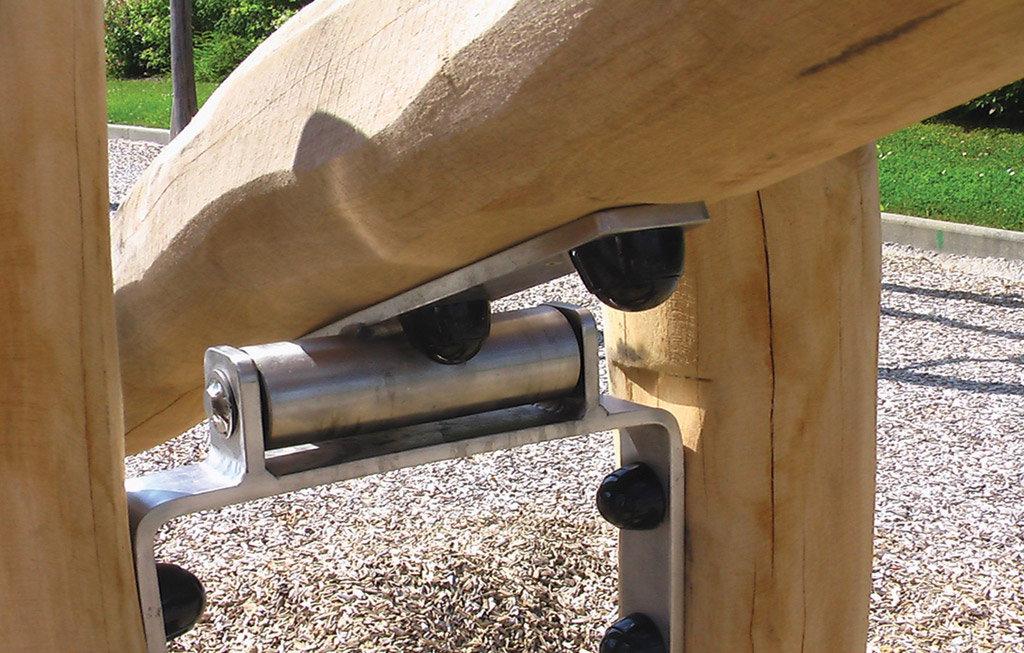

The rocking mechanism

The rocking mechanism is made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
