Adventure - Suspended Bridge - J49125®

We have created the reference J49125® in our "Adventure" range. This play equipment is accessible from 3 years. It can accommodate up to 21 users.

The size of the module is: 7.79 m length, 2.46 m width, 3.95 m. high. The free fall height (FFH) is 0.97 m.

5 play functions

meeting
Meeting x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x1
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range: 3+
Number of users: 21 users
FFH : 0.97 m
Size: 7.79 x 2.46 x 3.95 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.80 m3
Surface: 50.00 m2
Total weight: 1322.06 kg
Weight of the heaviest element: 1180.13 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The different posts

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards

The boards are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

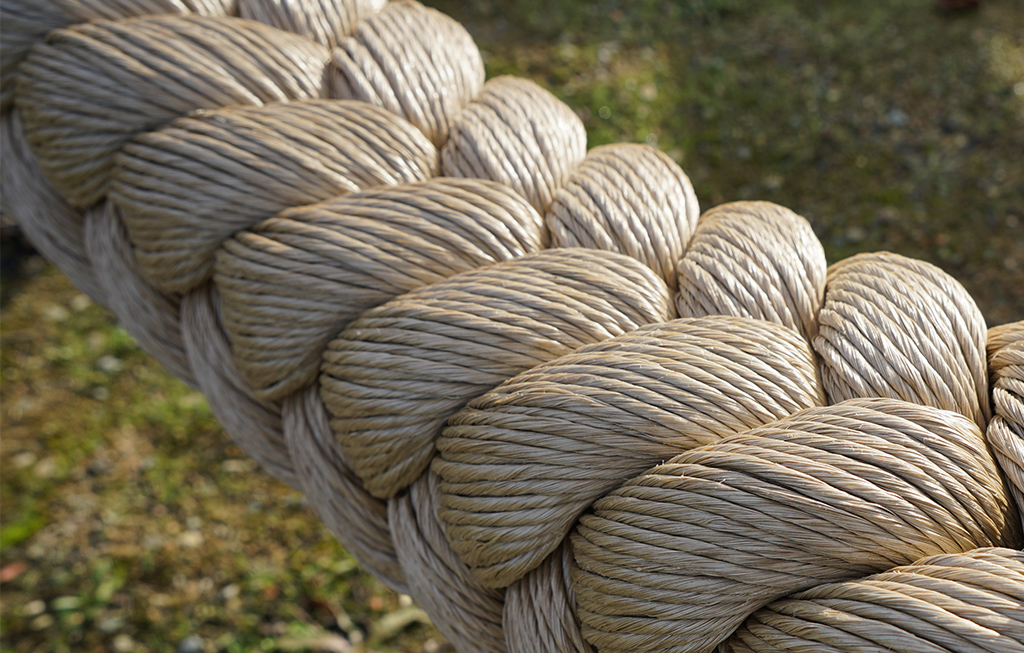

The rope

The rope is made of polypropylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
