Climbing equipment - Small Pyramid - J4815

We have created the reference J4815 in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 12 users.

The size of the module is: 3.00 m length, 3.00 m width, 2.60 m. high. The free fall height (FFH) is 0.97 m.

Specifications

Age range: 3+
Number of users: 12 users
FFH : 0.97 m
Size: 3.00 x 3.00 x 2.60 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 1.00 m3
Surface: 31.00 m2
Total weight: 102.38 kg
Weight of the heaviest element: 43.98 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

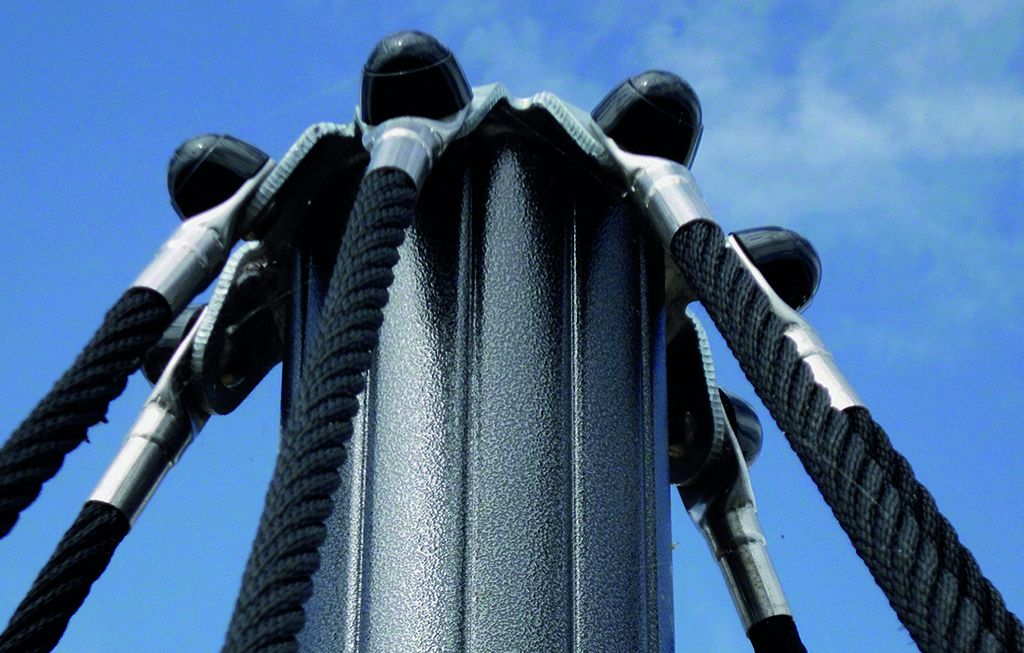

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

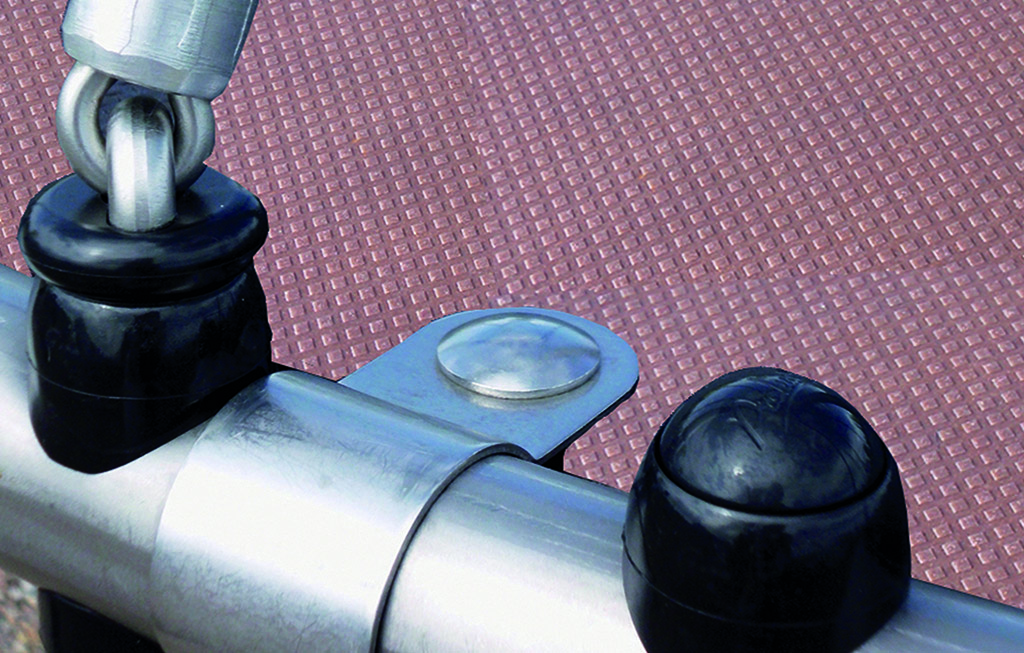

The platform

The platform is made from a textured and non-slip compact material (HPL), 19mm thick. The surface is circled with a 40mm diameter stainless steel tube.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
