Aquatica - Lighthouse - J47251®

We have created the reference J47251® in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 18 users.

The size of the module is: 9.38 m length, 5.81 m width, 6.89 m. high. The free fall height (FFH) is 2.37 m.

12 play functions

role play
Role play x1
Role play promotes the child's intellectual and social skills.
sliding
Sliding x3
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
hiding
Hiding x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
sheltering
Sheltering x1
Finding a small refuge to shelter in ensures children have a space of their own.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
climbing
Climbing x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Show more

Specifications

Age range: 3+
Number of users: 18 users
FFH : 2.37 m
Size: 9.38 x 5.81 x 6.89 m

Equipment installation

Number of installers: 4
Installation time: 25:00:00
Concrete volume: 2.00 m3
Surface: 53.50 m2
Total weight: 1112.55 kg
Weight of the heaviest element: 41.00 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The Kayak slide

The Kayak slide is made of rotomoulded polyethylene.

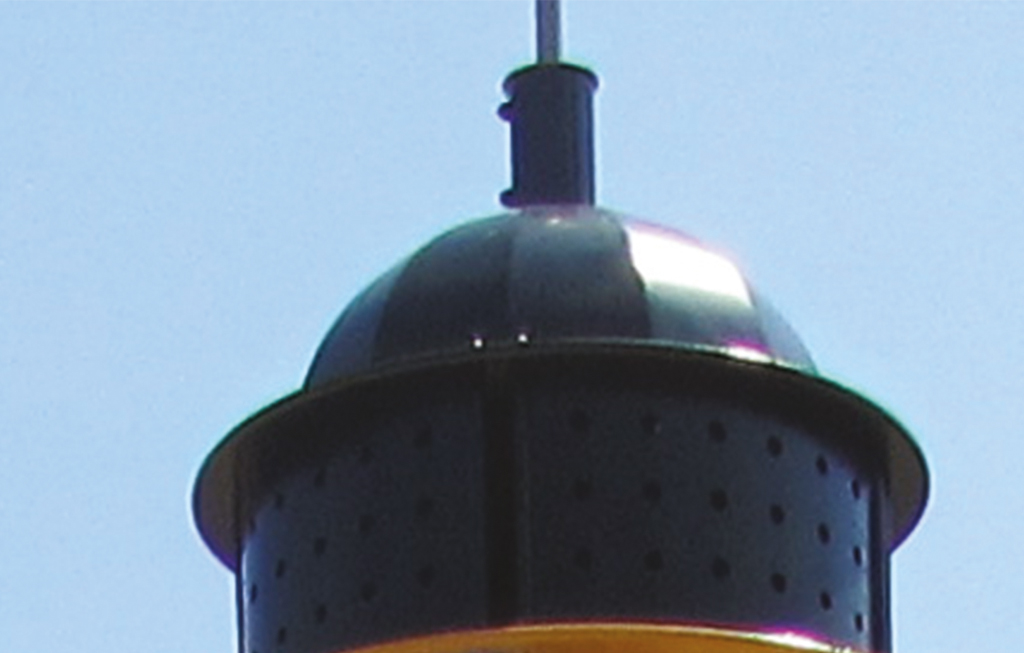

The roof

The roof is made of 3mm aluminium sheet, coated with polyester epoxy lacquer.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
