Octagonal Medieval Tower with polyethylene tube slide

We have created the reference J4701-P in our "Medieval" range. This play equipment is accessible from 3 years. It can accommodate up to 25 users.

The size of the module is: 7.20 m length, 7.00 m width, 7.20 m. high. The free fall height (FFH) is 2.37 m.

Other finishes available

15 play functions

role play
Role play x3
Role play promotes the child's intellectual and social skills.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
hiding
Hiding x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
sheltering
Sheltering x1
Finding a small refuge to shelter in ensures children have a space of their own.
climbing
Climbing x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
tactile stimulation
Tactile stimulation x1
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
visual stimulation
Visual stimulation x3
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
sliding
Sliding x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Show more

Specifications

Age range: 3+
Number of users: 25 users
FFH : 2.37 m
Size: 7.20 x 7.00 x 7.20 m

Equipment installation

Number of installers: 4
Concrete volume: 3.40 m3
Surface: 60.50 m2
Total weight: 2628.17 kg
Weight of the heaviest element: 50.61 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95x95mm and 125mm diameter posts

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

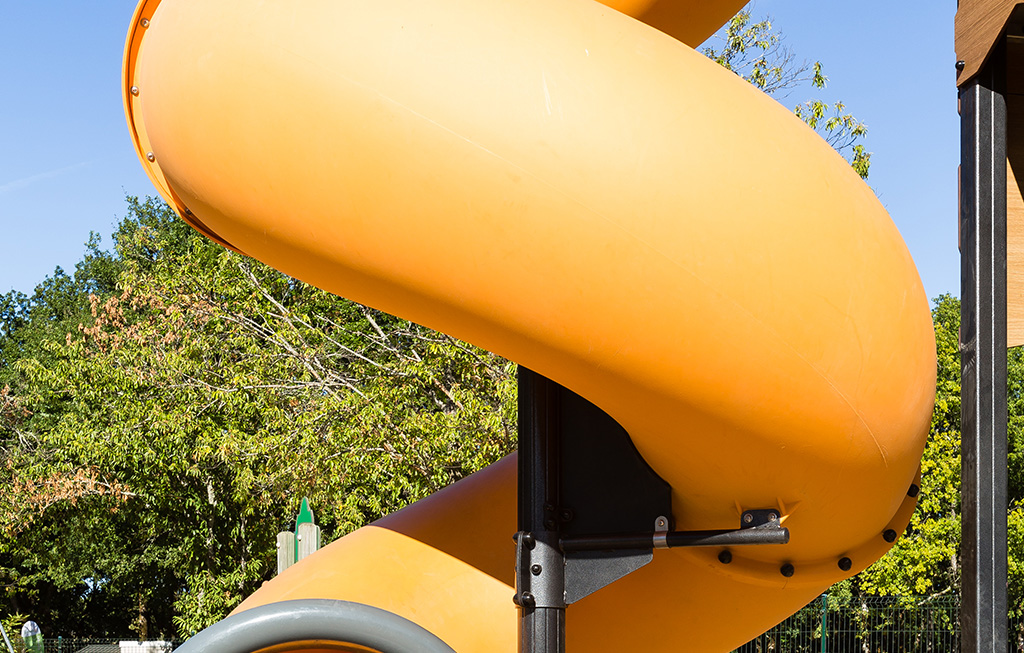

The tubular slide

The tubular slide is made of rotomoulded polyethylene.

The sliding surface

The sliding surface is made of polyester.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
