Biibox - J45023

We have created the reference J45023 in our "Biibox" range. This play equipment is accessible from 5 years. It can accommodate up to 19 users.

The size of the module is: 5.94 m length, 3.30 m width, 3.93 m. high. The free fall height (FFH) is 1.70 m.

10 play functions

sliding
Sliding x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
sheltering
Sheltering x2
Finding a small refuge to shelter in ensures children have a space of their own.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x1
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Show more

Specifications

Age range: 5+
Number of users: 19 users
FFH : 1.70 m
Size: 5.94 x 3.30 x 3.93 m

Equipment installation

Number of installers: 2
Installation time: 09:00:00
Concrete volume: 0.50 m3
Surface: 47.00 m2
Total weight: 509.03 kg
Weight of the heaviest element: 31.94 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

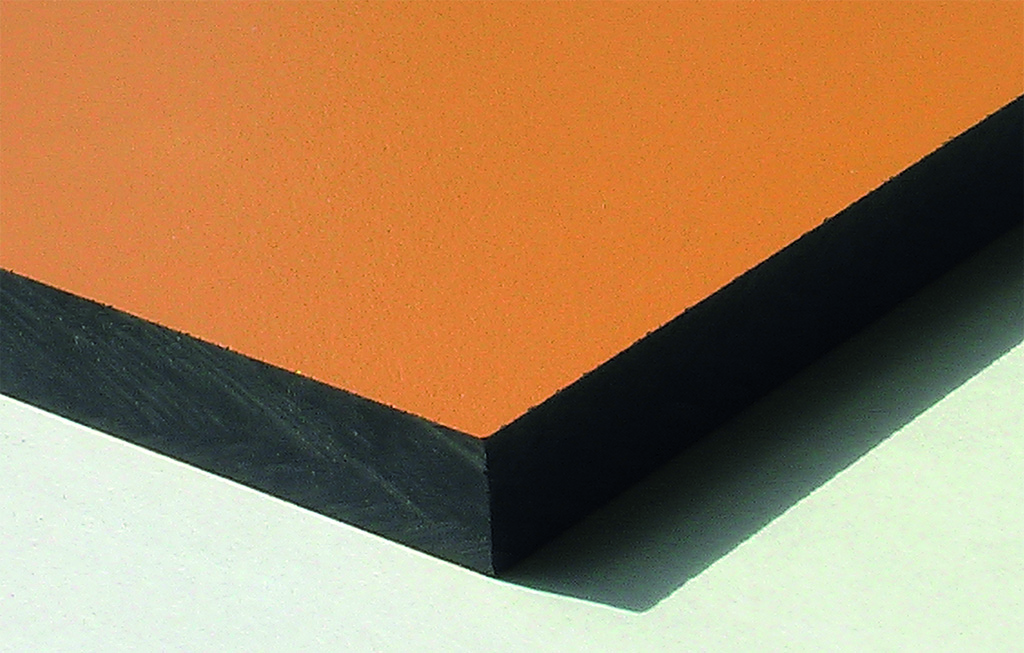

The play walls and roofs

The play walls and roofs are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The tunnel

The tunnel is made of 100% recycled rotomolded polyethylene, 76cm in diameter (RAL 9005).

The steps

The steps are made with a non-slip rubber overmould.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
