Swings - All For One - J442-M

We have created the reference J442-M in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 3.06 m length, 3.93 m width, 3.01 m. high. The free fall height (FFH) is 1.50 m.

Other finishes available

3 play functions

swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range: 2+
Number of users: 4 users
FFH : 1.50 m
Size: 3.06 x 3.93 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.30 m3
Surface: 15.50 m2
Total weight: 115.90 kg
Weight of the heaviest element: 19.90 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Swings - All For One - J442-M
Video - Swings - All For One - J442-M
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

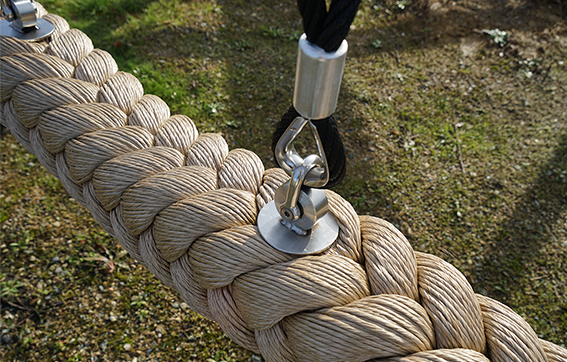

The seat

The seat is made of polypropylene rope. It is fixed to a stainless-steel frame, suspended from galvanised steel ropes covered in polyester, and extended with a... galvanised steel chain. Read more

The horizontal beam

The horizontal beam is made of non-painted galvanised steel.

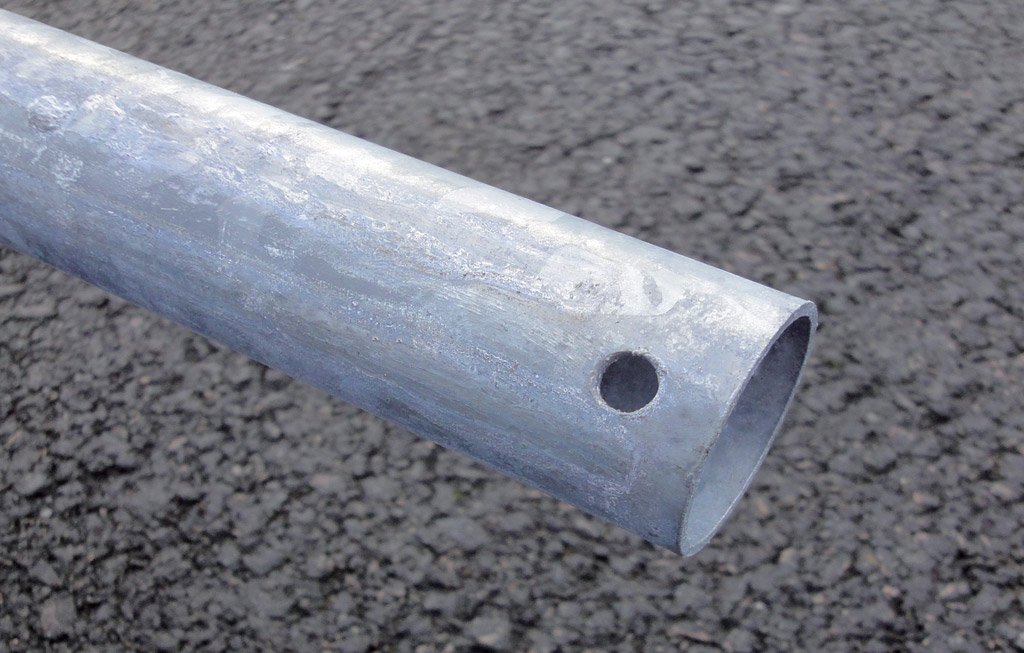

The tubes

The tubes are made of 60mm diameter steel.

The swing bearings

The swing bearings are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
