Diabolo - J3867-C

We have created the reference J3867-C in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 12 users.

The size of the module is: 4.40 m length, 3.48 m width, 2.90 m. high. The free fall height (FFH) is 1.40 m.

Other finishes available

10 play functions

climbing
Climbing x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
sliding
Sliding x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.
handling
Handling x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
sheltering
Sheltering x1
Finding a small refuge to shelter in ensures children have a space of their own.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
tactile stimulation
Tactile stimulation x1
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
Show more

Specifications

Age range: 3+
Number of users: 12 users
FFH : 1.40 m
Size: 4.40 x 3.48 x 2.90 m

Equipment installation

Number of installers: 2
Installation time: 10:00:00
Concrete volume: 0.16 m3
Surface: 39.50 m2
Total weight: 234.19 kg
Weight of the heaviest element: 26.00 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform and the climbing wall

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The roof

The roof is made of 10mm thick polyethylene plates.

The horizontal beam

The horizontal beam is made of non-painted galvanised steel.

The support legs

The support legs are made from 60mm galvanised steel.

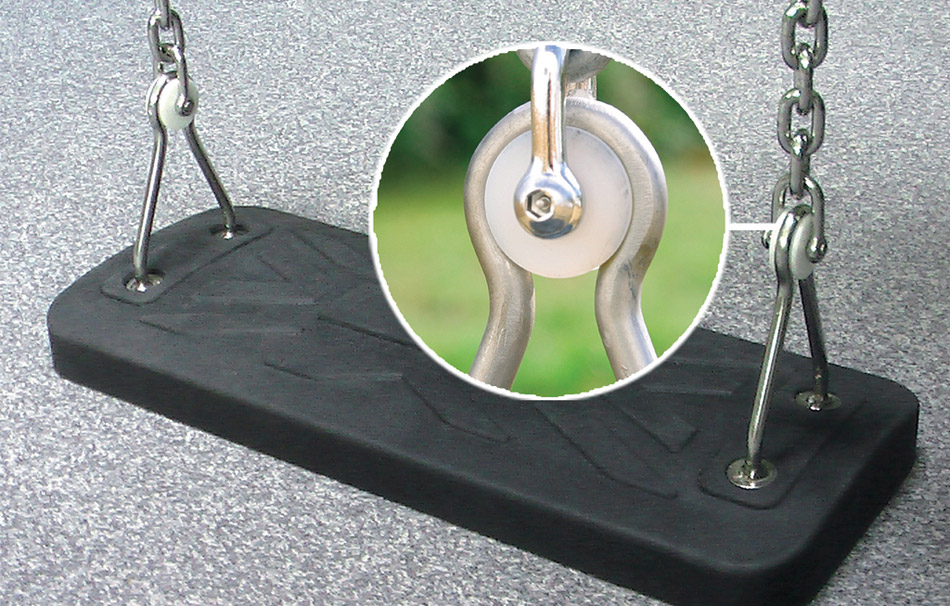

The swing seats

The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of galvanised steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
