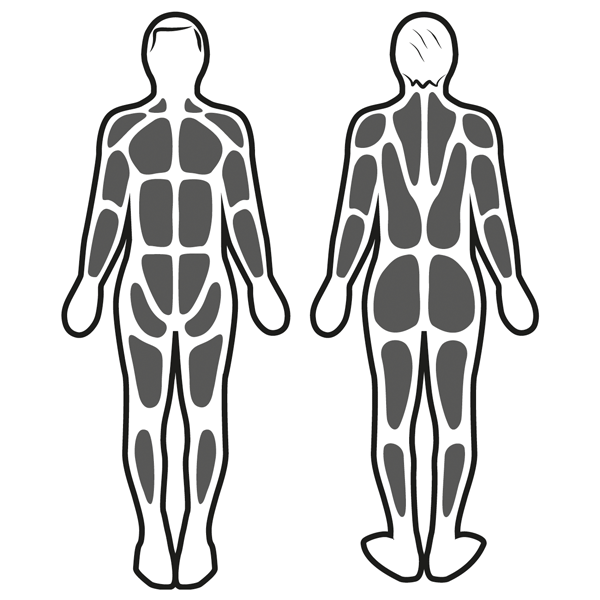

Muscle stimulation

Muscle stimulation

ACTI’Fit - Dynamic fitness station - J37111®

We have created the reference J37111® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 6 users.

The size of the module is: 4.02 m length, 3.35 m width, 2.75 m. high. The free fall height (FFH) is 1.10 m.

7 sports activities

hanging
Hanging x1
Pull-ups
Pull-ups x1
Abs
Abs x1
boxing
Boxing x1
pedalling
Pedalling x1
Resistance
Resistance x1
Lift
Lift x1
Show more

Specifications

Age range: 10+
Number of users: 6 users
FFH : 1.10 m
Size: 4.02 x 3.35 x 2.75 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 1.50 m3
Surface: 35.50 m2
Total weight: 432.08 kg
Weight of the heaviest element: 34.47 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

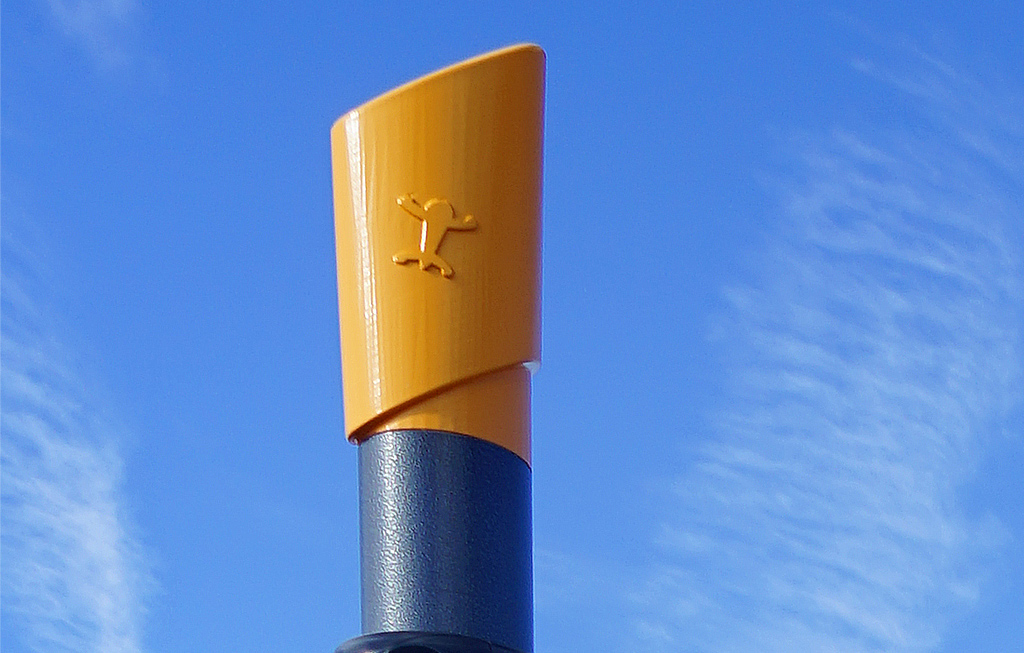

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

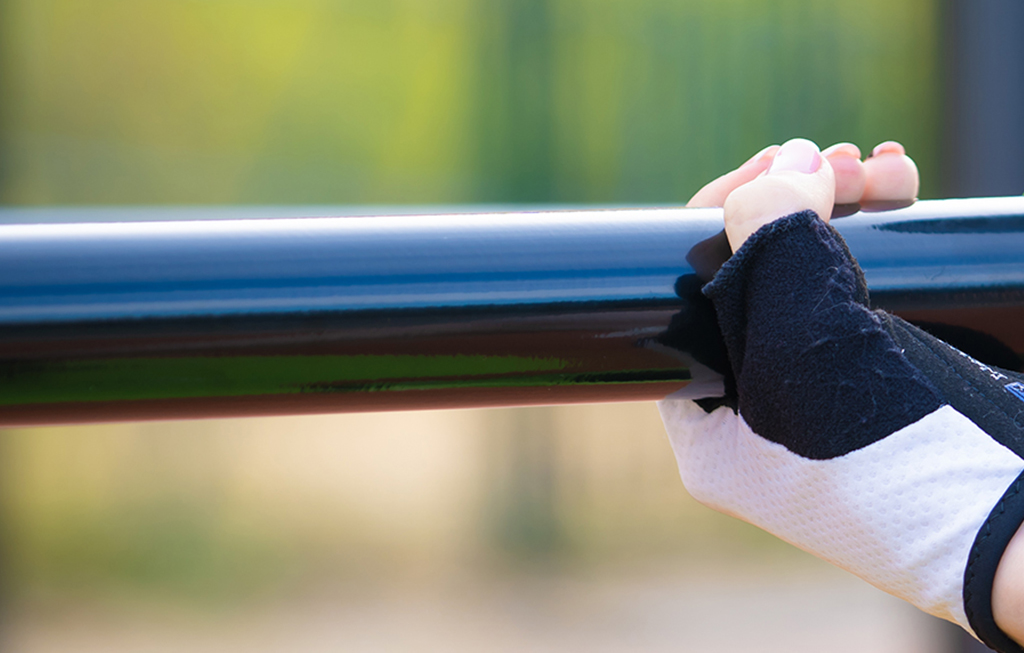

The tubes used for the Parallel bars and Suspension bars

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

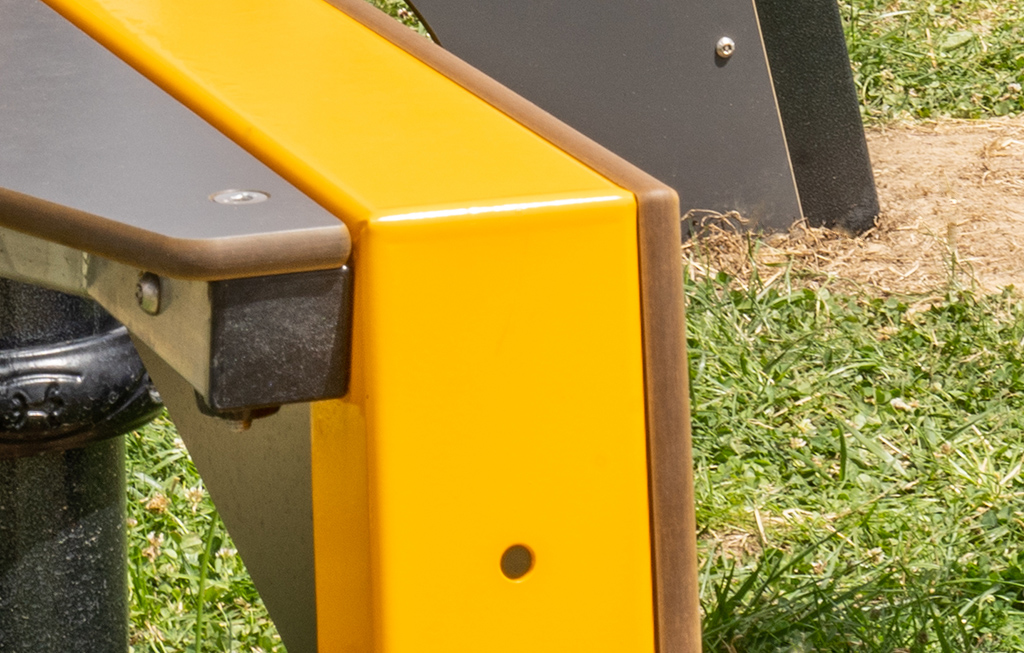

The Central Column seating

The Central Column seating is supported by a painted galvanized steel frame structure.

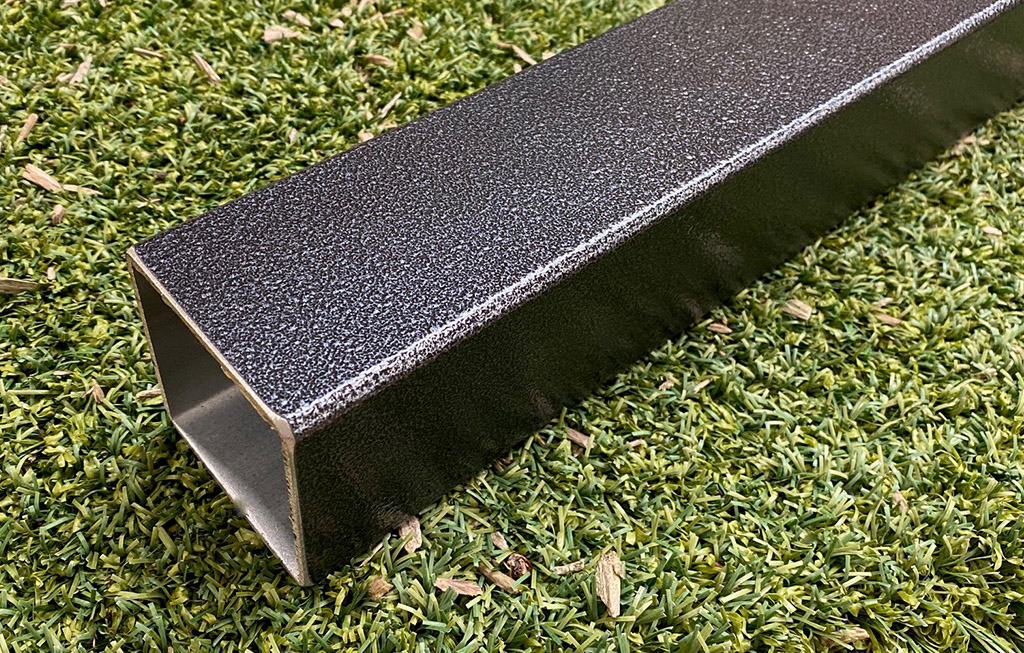

The 70 x 70mm posts

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability.

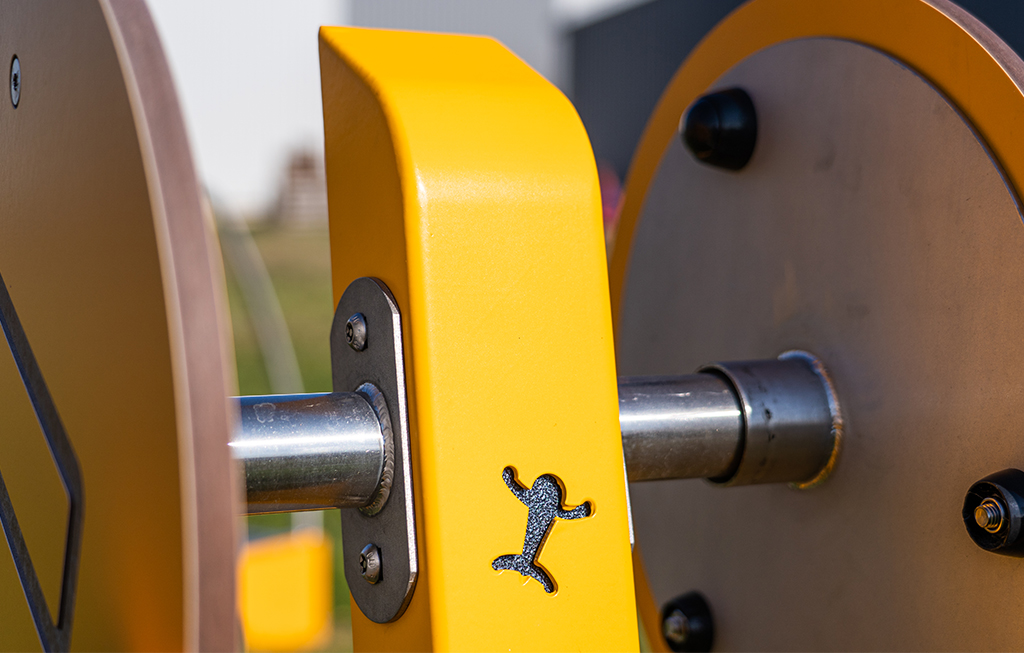

The caps

The caps are made of of painted stainless steel.

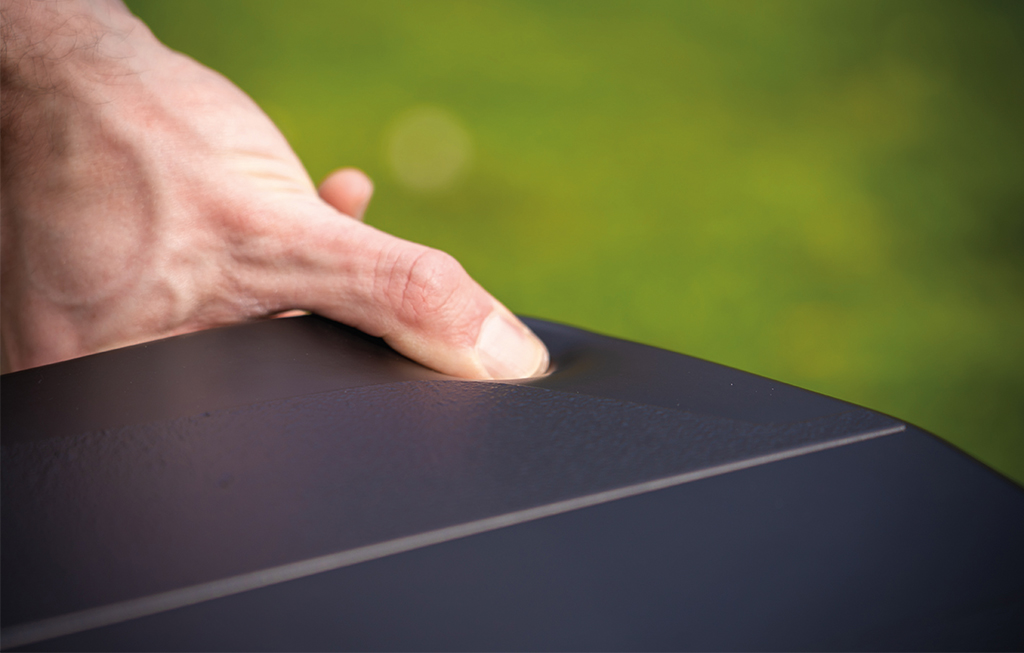

The polyurethane foam seats and backrests

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

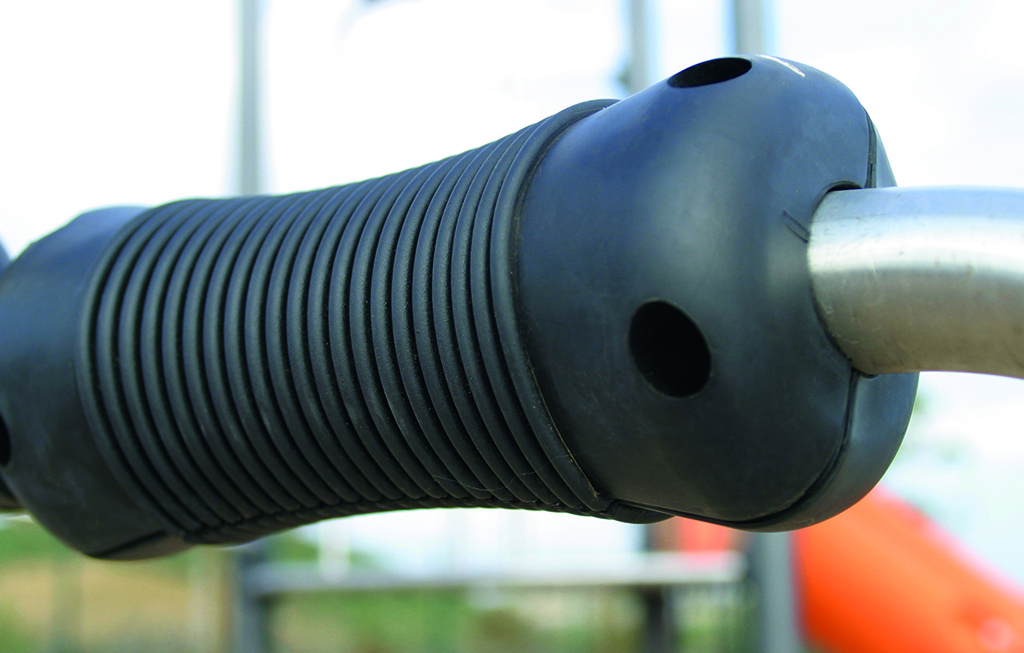

The steps

The steps are made with a non-slip rubber overmould.

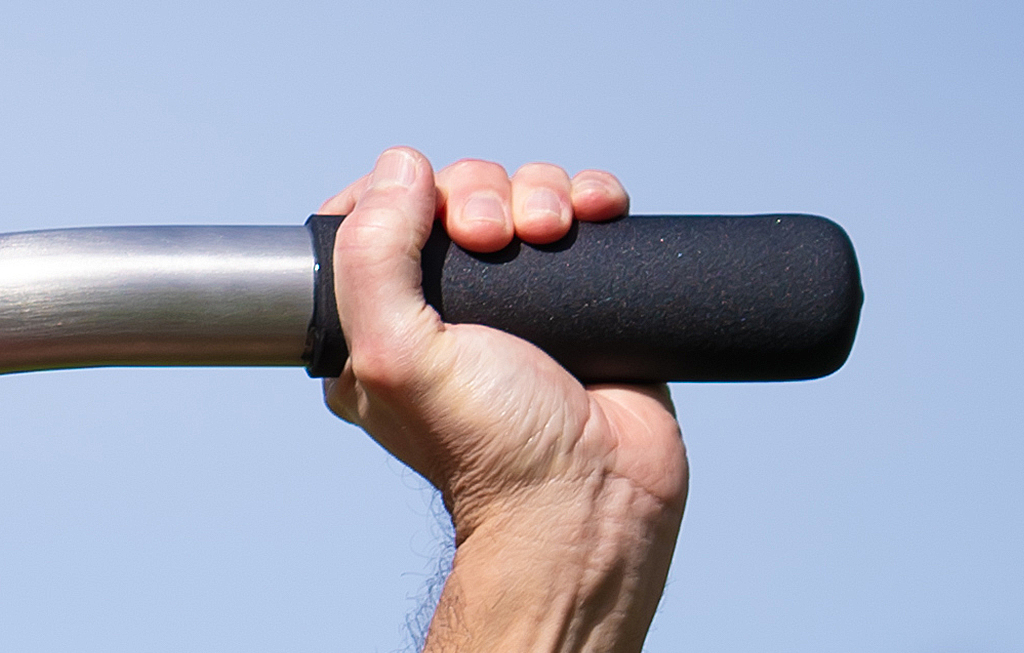

The handles

The handles are made of polyvinyl chloride.

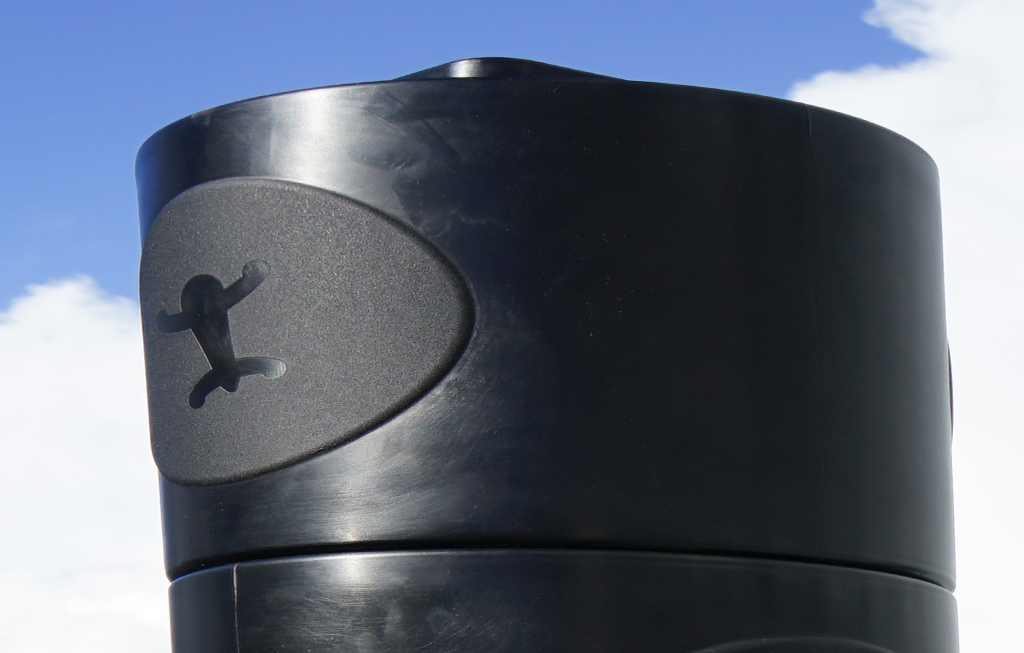

The Punching bag

The Punching bag is made of polyurethane foam.

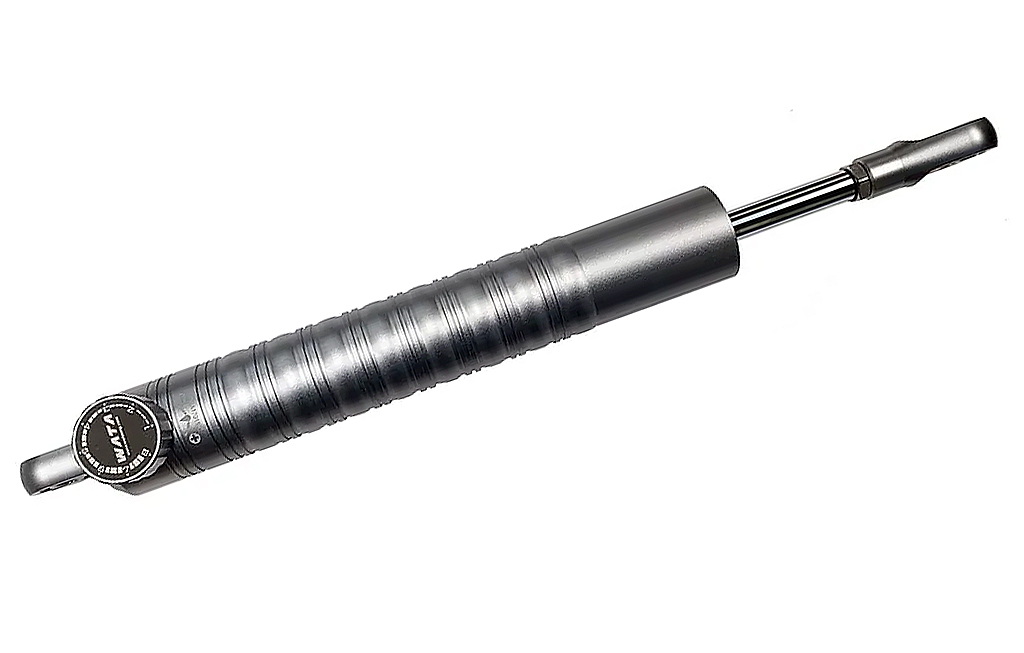

The hydraulic

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
