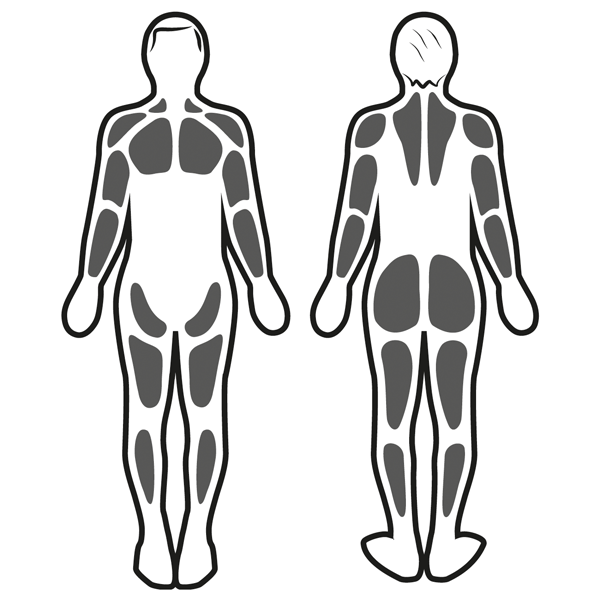

Muscle stimulation

Muscle stimulation

ACTI’Fit - Compact cardio & strength fitness station - J37110®

We have created the reference J37110® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 5 users.

The size of the module is: 2.04 m length, 1.89 m width, 2.55 m. high. The free fall height (FFH) is 0.60 m.

8 sports activities

balancing
Balancing x1
jumping
Jumping x1
Squats
Squats x1
boxing
Boxing x1
Resistance
Resistance x2
Lift
Lift x2
Show more

Specifications

Age range: 10+
Number of users: 5 users
FFH : 0.60 m
Size: 2.04 x 1.89 x 2.55 m

Equipment installation

Number of installers: 2
Installation time: 12:00:00
Concrete volume: 0.50 m3
Surface: 21.50 m2
Total weight: 167.42 kg
Weight of the heaviest element: 24.25 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

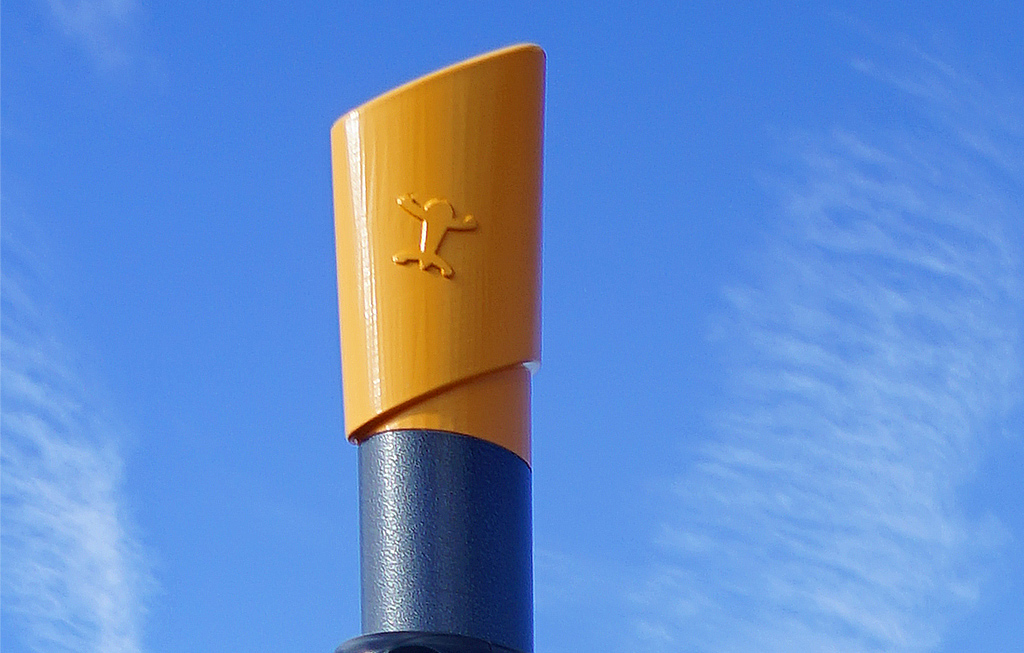

The 102mm diameter post

The 102mm diameter post is made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The cap is made of rotary... moulded polyethylene. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The tubes

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Central Column seating

The Central Column seating is supported by a painted galvanized steel frame structure.

The 70 x 70mm post

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap

The cap is made of painted stainless steel.

The polyurethane foam seats and backrests

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The handles

The handles are made of polyvinyl chloride.

The shoulder supports

The shoulder supports are made of rubber.

The hydraulic

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

The Punching ball

The Punching ball is made of polyurethane foam. The fixing system is made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
