Proludic Australia
We have created the reference J3512® in our "Cableways" range. This module is accessible from 2 years. It can accommodate up to 5 users.
The size of the module is: 5.84 m wide, 5.40 m. deep, 0.50 m. high. The free fall height (FFH) is 0.50 m.
| Age range: | 2+ |
| Number of users: | 5 users |
| FFH : | 0.50 m |
| Size: | 5.84 x 5.40 x 0.50 m |
| Number of installers: | 2 |
| Installation time: | 04:00:00 |
| Concrete volume: | 0.33 m3 |
| Surface: | 60.50 m2 |
| Total weight: | 255.83 kg |
| Weight of the heaviest element: | 32.00 kg |
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The protective bar is made of PVC.

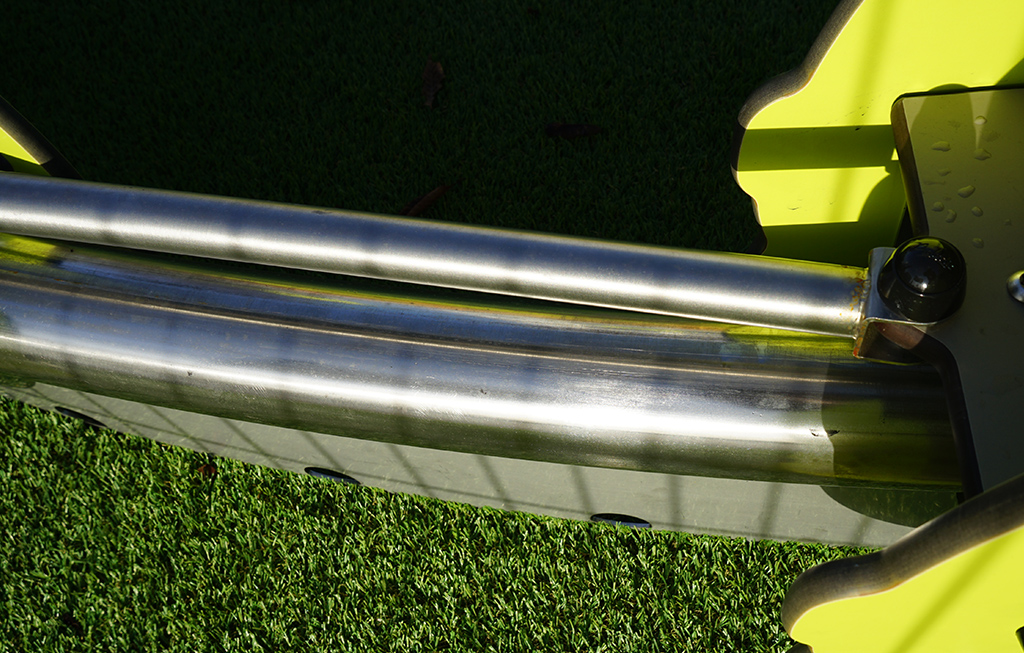

The rail is made of stainless steel, Ø 76.1mm, 3.2mm thick.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
