Play panels, Audio & Musical play - Pixel Panel - J3426®

We have created the reference J3426® in our "Play panels, Audio & Musical play" range. This play equipment is accessible from 1 year. It can accommodate up to 1 user.

The size of the module is: 1.14 m length, 0.26 m width, 1.40 m. high. The free fall height (FFH) is 0.60 m.

4 play functions

handling
Handling x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
role play
Role play x1
Role play promotes the child's intellectual and social skills.
thinking
Thinking x1
Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.
tactile stimulation
Tactile stimulation x1
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range: 1+
Number of users: 1 user
FFH : 0.60 m
Size: 1.14 x 0.26 x 1.40 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.07 m3
Surface: 11.50 m2
Total weight: 68.03 kg
Weight of the heaviest element: 23.10 kg

Environmental Indicators

Repairability

Repairability

9.46 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The posts with average diameter 120 to 140mm

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

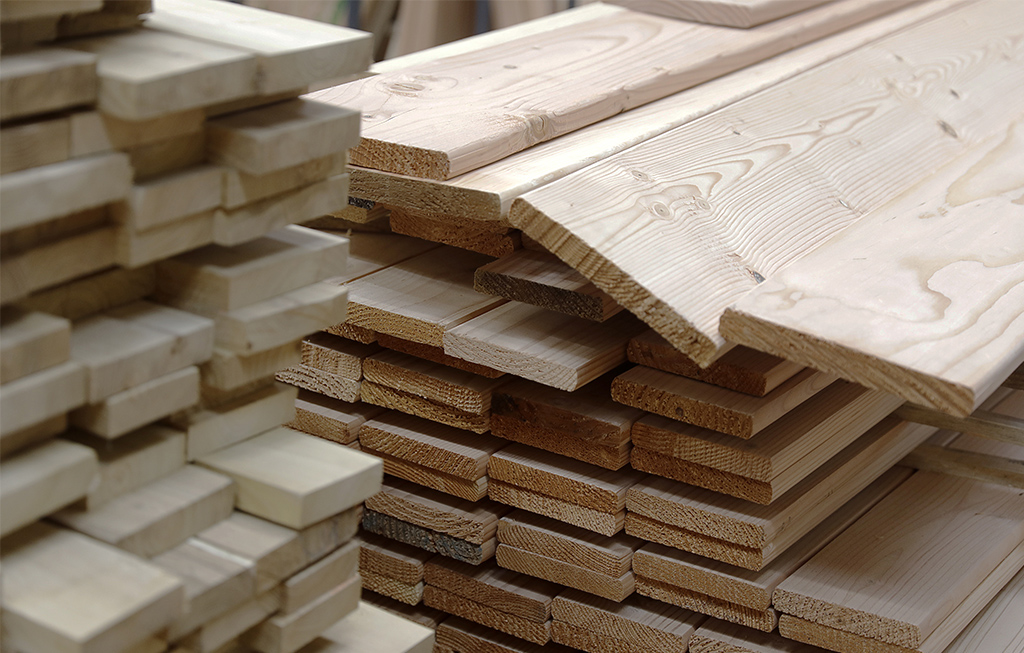

The boards

The boards are made from sap free robinia (plank sizes: 22 and 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

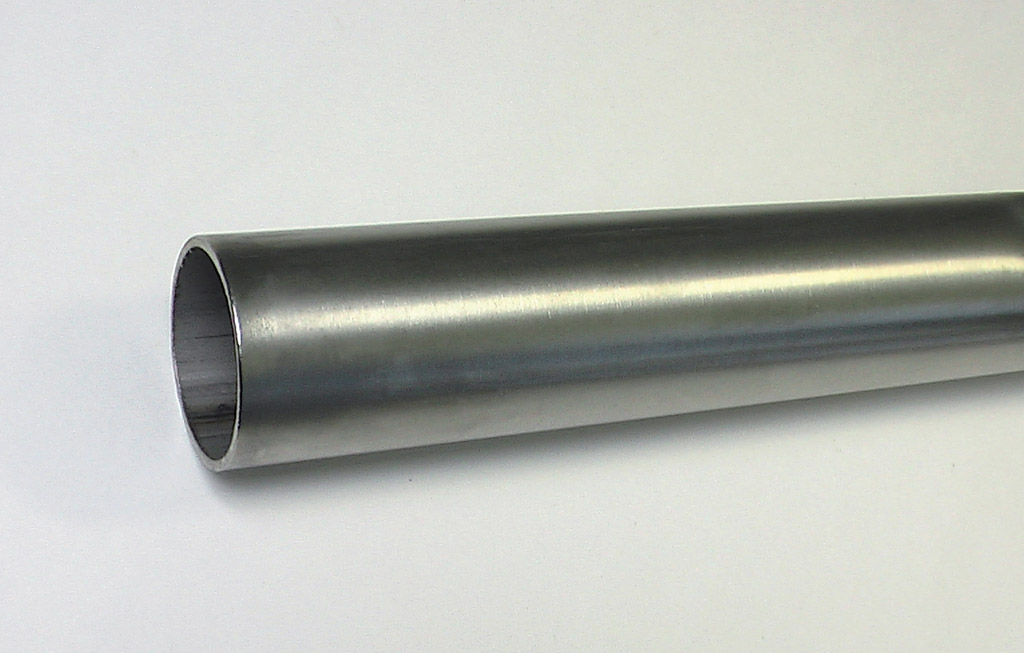

The tubes

The tubes are made of 21mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
