Ixo - J2577-M

We have created the reference J2577-M in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 16 users.

The size of the module is: 9.02 m length, 4.38 m width, 3.40 m. high. The free fall height (FFH) is 2.20 m.

10 play functions

sliding
Sliding x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.
hanging
Hanging x1
This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x2
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Show more

Specifications

Age range: 6+
Number of users: 16 users
FFH : 2.20 m
Size: 9.02 x 4.38 x 3.40 m

Equipment installation

Number of installers: 2
Installation time: 06:00:00
Concrete volume: 0.50 m3
Surface: 64.00 m2
Total weight: 285.10 kg
Weight of the heaviest element: 42.16 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The rubber ring

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The one-piece rail

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

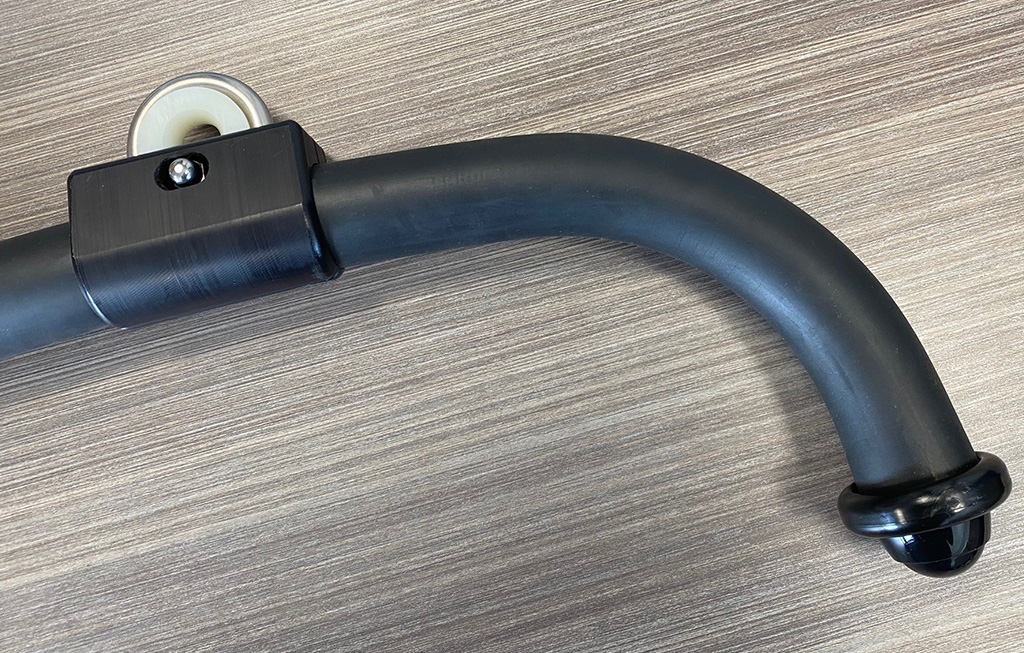

The grip section of the stainless steel handle

The grip section of the stainless steel handle is overmoulded with rubber to give a good grip.

The ladder rungs

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
