Rotating equipment - Double Inclusive Whirlwind - J2404

We have created the reference J2404 in our "Rotating equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 1.20 m length, 1.20 m width, 0.88 m. high. The free fall height (FFH) is 1.00 m.

3 play functions

balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
rotating
Rotating x1
Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Specifications

Age range: 2+
Number of users: 4 users
FFH : 1.00 m
Size: 1.20 x 1.20 x 0.88 m

Equipment installation

Number of installers: 1
Installation time: 03:00:00
Concrete volume: 0.30 m3
Surface: 23.00 m2
Total weight: 94.68 kg
Weight of the heaviest element: 83.77 kg

Environmental Indicators

Repairability

Repairability

9.06 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Rotating equipment - Double Inclusive Whirlwind - J2404
Video - Rotating equipment - Double Inclusive Whirlwind - J2404
Side view
Side view
View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

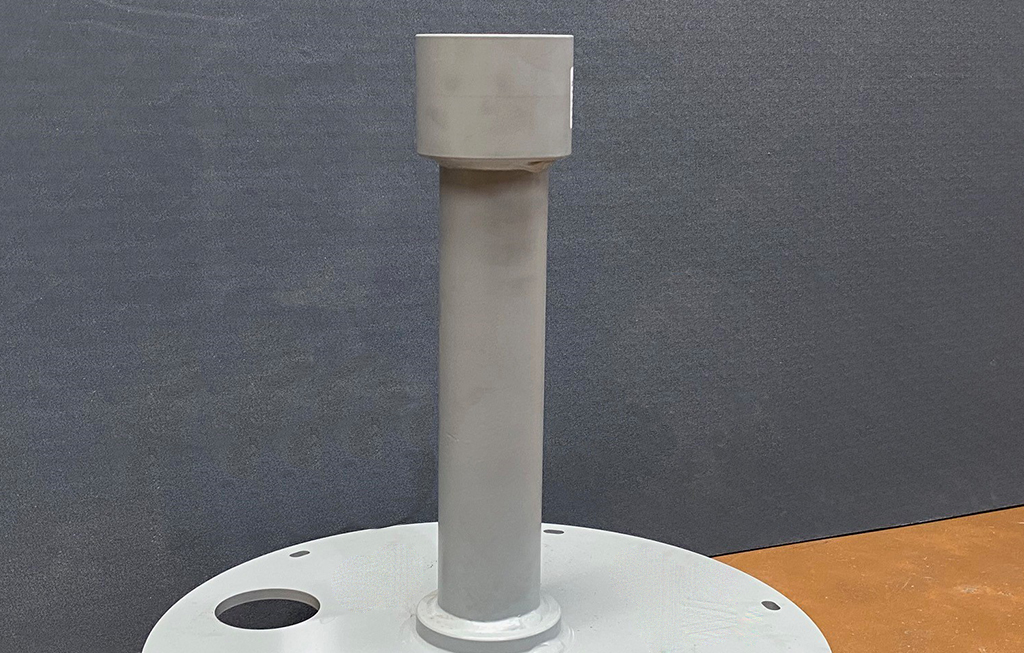

The post

The post is made of painted galvanised steel, ensuring robustness and durability.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
