Neptune J1962 - Playgrounds - Themed equipment

Neptune

We have created the reference J1962® in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 36 users.

The size of the module is: 11.80 m length, 5.51 m width, 6.80 m. high. The free fall height (FFH) is 2.10 m.

16 play functions

Role play x4

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	3+
Number of users:	36 users
FFH :	2.10 m
Size:	11.80 x 5.51 x 6.80 m

Equipment installation

Number of installers:	3
Installation time:	30:00:00
Concrete volume:	1.70 m3
Surface:	88.00 m2
Total weight:	2151.44 kg
Weight of the heaviest element:	42.77 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

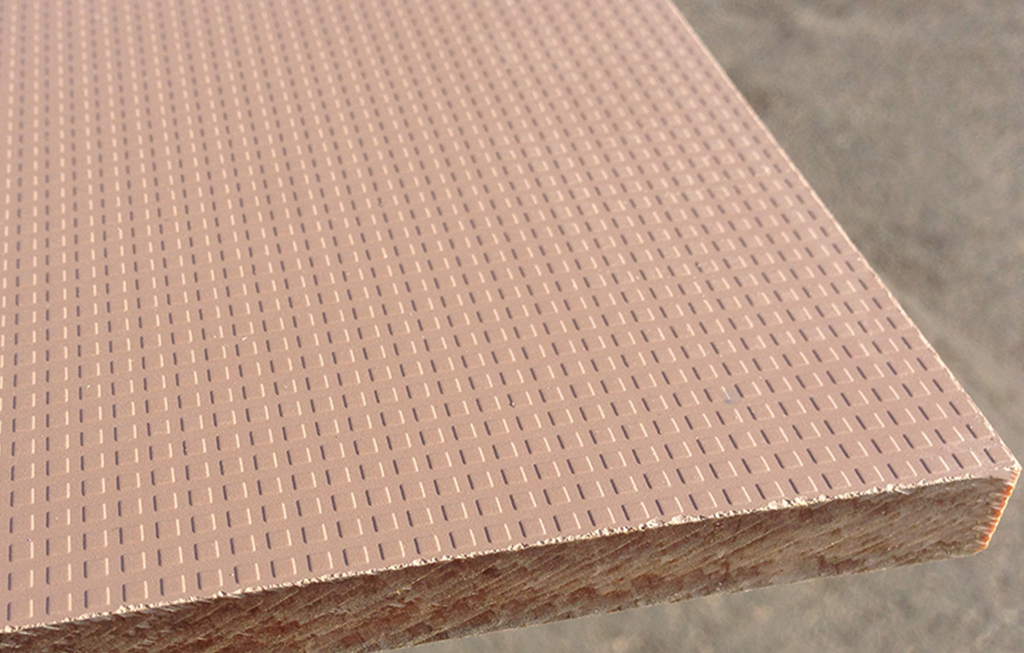

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
