Trawler
We have created the reference J1952 in our "Aquatica" range. This module is accessible from 3 years. It can accommodate up to 17 users.
The size of the module is: 4.44 m wide, 5.86 m. deep, 3.00 m. high. The free fall height (FFH) is 1.37 m.
10 play functions
Climbing
x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Visual stimulation
x1
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
Meeting
x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Hiding
x2
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
Traversing
x2
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Sliding
x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Specifications
| Age range: | 3+ |
| Number of users: | 17 users |
| FFH : | 1.37 m |
| Size: | 4.44 x 5.86 x 3.00 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 32:00:00 |
| Concrete volume: | 0.50 m3 |
| Surface: | 49.50 m2 |
| Total weight: | 667.67 kg |
| Weight of the heaviest element: | 33.60 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Materials
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

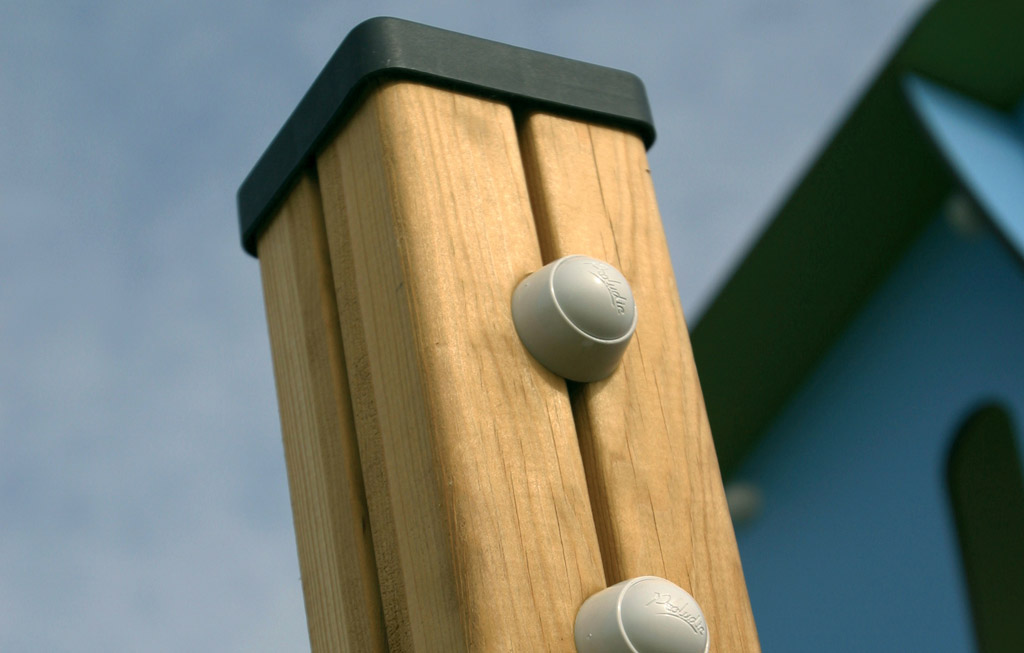

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

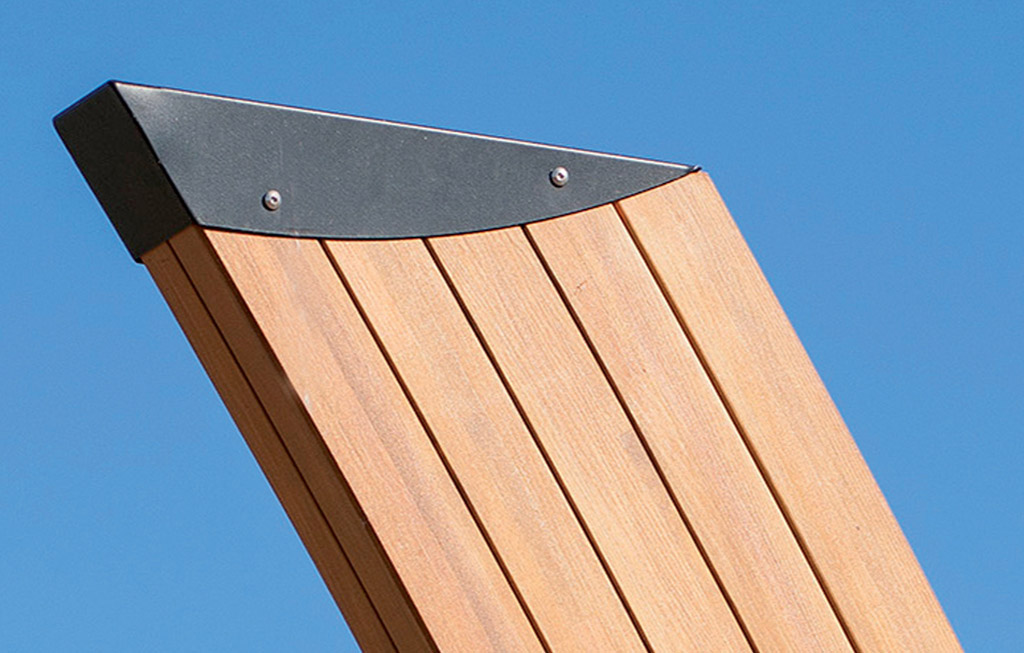

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipement both strong and vandal resistant. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
