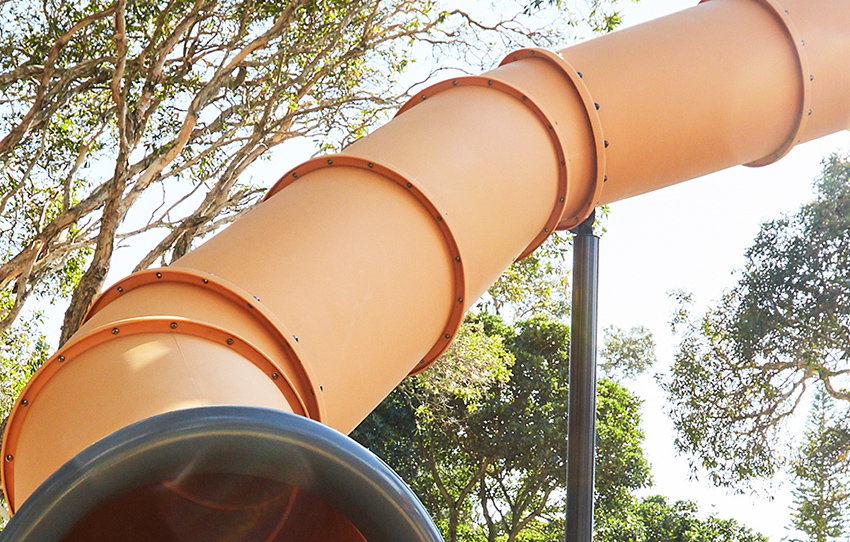

Tubular Embankment Slide

We have created the reference J1130 in our "Slides" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 8.03 m length, 1.36 m width, 3.94 m. high. The free fall height (FFH) is 1.00 m.

3 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Specifications

Age range:	2+
Number of users:	4 users
FFH :	1.00 m
Size:	8.03 x 1.36 x 3.94 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.20 m3
Surface:	26.00 m2
Total weight:	253.73 kg
Weight of the heaviest element:	41.00 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platform is 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
