We have created the reference J1662-M in our "Climbing equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 8 users.

The size of the module is: 2.29 m length, 2.30 m width, 1.75 m. high. The free fall height (FFH) is 1.70 m.

Other finishes available

5 play functions

climbing
Climbing x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
hanging
Hanging x2
This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
traversing
Traversing x1
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range: 2+
Number of users: 8 users
FFH : 1.70 m
Size: 2.29 x 2.30 x 1.75 m

Equipment installation

Number of installers: 2
Installation time: 03:30:00
Concrete volume: 0.20 m3
Surface: 24.00 m2
Total weight: 115.36 kg
Weight of the heaviest element: 28.87 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

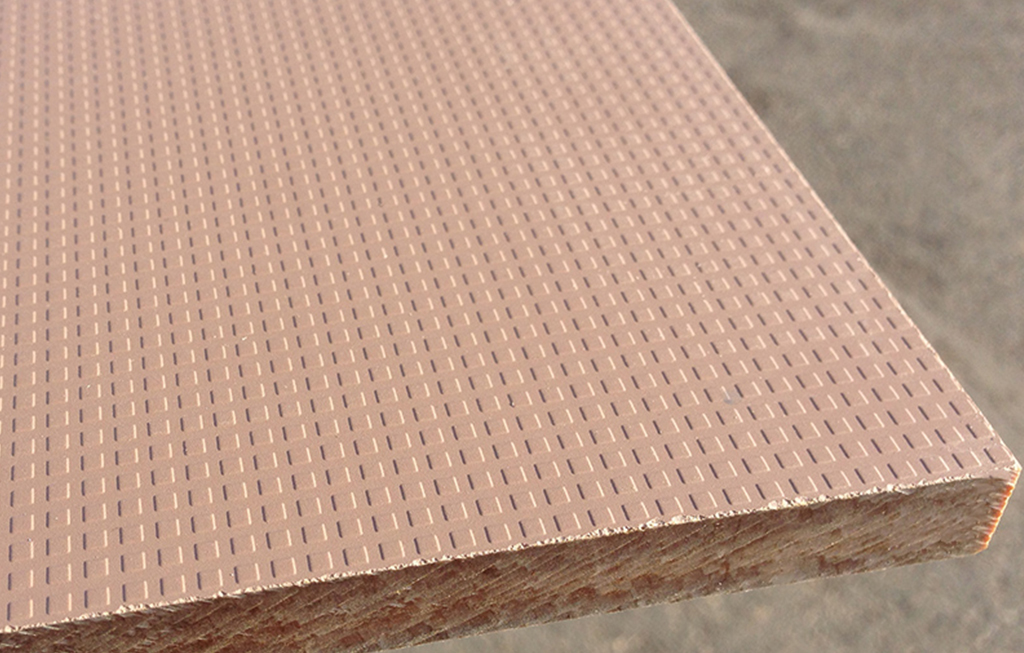

The climbing wall

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
